HVAC Filter Making Machine

Product Categories

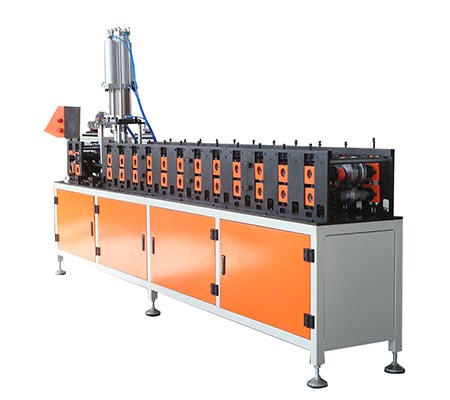

JSMRWK-50 Full-auto Outer Frame Forming Machine

Production Speed: 0–80 pcs/h
Material Thickness: 0.3–0.8 mm
Power Supply: AC 380V / 50Hz
Machine Power: 2.2 kW
Air Consumption: 20 L/min
Machine Size: 6750 × 700 × 1500 mm

JSMRK6-700 Mesh Knife Pleating Machine

Max. Paper Width: 680 mm
Pleat Depth Range: 3–70 mm
Pleat Speed: 0–200 pleats/min
Pleat Type: M, W, Stair, and other profiles
Power Voltage: 380V / 50Hz
Working Air Pressure: 0.6 MPa

JSMRK2-100-800 Mesh Knife Pleating Machine

Max. Width: 800 mm
Adjustable Pleating Height: 8–100 mm
Pleating Speed: 0–200 pleats/min
Power Supply: 220V / 50Hz, Single Phase
Heating Temperature: Normal Temperature–200°C
Working Air Pressure: 0.6 MPa

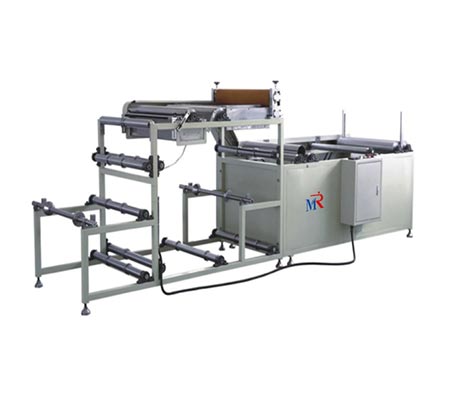

JSMRFH-1000 Filter Materials Compositing Machine

Materials Width: ≤ 1000 mm
Production Capacity: 3 m/min
Materials Coil Diameter: ≤ Φ800 mm
Heating Power: 3 kW
Power Supply: 380V / 50Hz
Working Air Pressure: 0.6 MPa

Our Advantages

At MOER Machine, we understand what filter manufacturers need most: stable output, easy operation, reliable quality, and machines that can adapt to different production requirements. That is why every solution we provide is built with real factory use in mind.

Built for Real Factory Production

MOER Machine designs filter making equipment around real production needs. Our machines are built to support stable output, consistent quality, and efficient daily operation in factory environments.

Designed for Different Market Requirements

We understand that different countries and customers have different standards for voltage, safety, machine size, production capacity, and material compatibility. Our equipment can be configured to meet various overseas production requirements.

Stable Performance in Continuous Operation

For filter manufacturers, machine stability directly affects delivery time and product consistency. We focus on precise control, durable structure, and reliable running performance to support long-term continuous production.

Flexible for Different Filter Materials

Filter production often involves different materials, thicknesses, and process requirements. Our machines are designed to handle a wide range of filter applications with practical adjustment and strong adaptability.

Controlled Quality from Start to Finish

From component selection and assembly to final testing, every stage is managed under a controlled process. This helps ensure consistent machine quality and dependable performance before delivery.

Support for Long-Term Production

We do not only supply machines. We also provide technical support, commissioning guidance, and after-sales assistance to help customers maintain stable production and reduce downtime.

Applications & Materials

Suitable for a wide range of filter production applications

Air, oil, and liquid filtration
Filter paper, synthetic media, and non-woven materials
Standard and customized filter products

Customization & Support

Customized Configuration

We offer comprehensive, multi-language, multi-specification machine customization and production line planning services tailored to your production capacity, factory layout, and localization needs.

Process-Specific Adaptation

Equipment can be specifically adjusted and optimized to perfectly match your unique filtration production processes, production cycle time, and factory operation requirements.

Full-Cycle After-Sales Support

We provide a full range of services including installation guidance, commissioning, operation training, original spare parts supply, and lifetime maintenance and technical support.
