High Flow Filter Cartridge Making Machine

Product Categories

By Filter Type Application

By Filter Production Process

MOER high flow filter cartridge making machines cover multi-layer unwinding, seam welding, length cutting, joining and end-cap welding for pleated cartridges. The equipment processes PP, PTFE, fiberglass and nonwoven media for large-diameter pleated liquid filter cartridges, including common 3M-, Parker- and Pall-type formats.

• Production focus: Consistent seam and edge bonding, controlled cartridge length and secure end-cap welding
• Applications: Industrial water treatment, chemical processing, food and beverage, pharmaceutical filtration and RO pretreatment

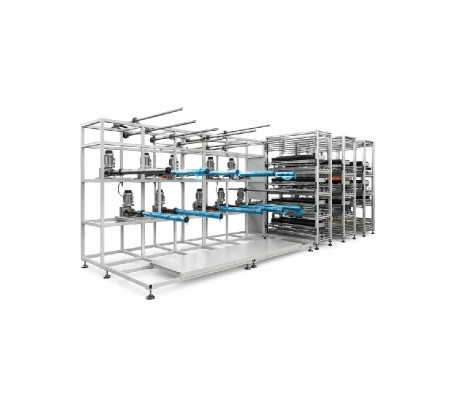

JSMRT-10 Multi-layers Unwinder

Unwinding Layers: 1–10 layers
Available Width: 1050 / 1250 mm
Common Layer Configurations: 3, 5, 6, 9, 10 layers
Unwinding Mode: Active or Passive Unwinding
Optional Function: Unwinding Rack Web Guiding

JSMRRS-1 High Flow Filter Middle Seam Ultrasonic Welder

Ultrasonic Power: 4200 W
Welding Side Length: 10–50 mm
Welding Speed: 0–3 m/min
Applicable Materials: PP Filter Membrane, Fiberglass Filter Membrane

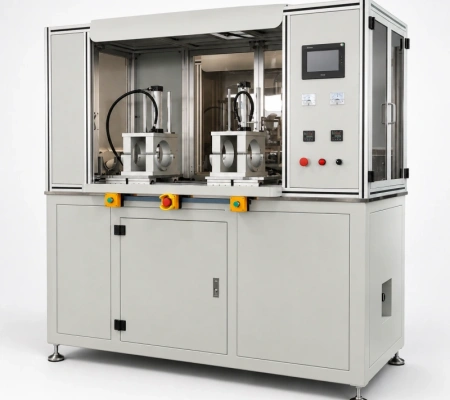

JSMRJC-1660 High Flow Filter Element Lengthening Welding Machine

Heating Accuracy: ±2℃
Welding Cycle: Approx. 30 s / pc
Applicable Cartridge Type: High Flow Pleated / Large-diameter Cartridges

JSMRJC-1 High Flow Pleated Filter Cartridge Length Cutting Machine

Applicable Cartridge Diameter: 82–152.4 mm / 3"–6"
Compatible Filter Type: 3M, Parker, Pall and Equivalent High Flow Cartridges
Cutting Cycle: Approx. 20 s / pc
Equipment Power: 2.5 kW

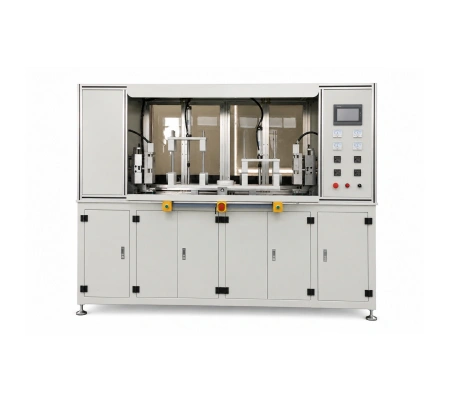

JSMRGH-1 High Flow Filter Element Double-Head End Cap Welding Machine

Welding Method: Double-Head Hot Plate Welding
Max. Filter Element Length: 40 inches
Driving System: Servo-driven Mechanism
Heating Accuracy: ±2℃
Welding Cycle: Approx. 40 s / piece

JSMRFS-1 High Flow Filter Cartridge Edge Ultrasonic Welding Machine

Welding Technology: Ultrasonic Edge Welding
Applicable Materials: PP, PTFE, Non-woven Fabrics
Machine Total Power: 1 kW
Power Supply: 380 V / 50 Hz
Air Supply Pressure: 0.6 MPa

Built for Real Factory Production

MOER Machine designs filter making equipment around real production needs. Our machines are built to support stable output, consistent quality, and efficient daily operation in factory environments.

Designed for Different Market Requirements

We understand that different countries and customers have different standards for voltage, safety, machine size, production capacity, and material compatibility. Our equipment can be configured to meet various overseas production requirements.

Stable Performance in Continuous Operation

For filter manufacturers, machine stability directly affects delivery time and product consistency. We focus on precise control, durable structure, and reliable running performance to support long-term continuous production.

Flexible for Different Filter Materials

Filter production often involves different materials, thicknesses, and process requirements. Our machines are designed to handle a wide range of filter applications with practical adjustment and strong adaptability.

Controlled Quality from Start to Finish

From component selection and assembly to final testing, every stage is managed under a controlled process. This helps ensure consistent machine quality and dependable performance before delivery.

Support for Long-Term Production

We do not only supply machines. We also provide technical support, commissioning guidance, and after-sales assistance to help customers maintain stable production and reduce downtime.

Applications & Materials

Suitable for a wide range of filter production applications

Air, oil, and liquid filtration
Filter paper, synthetic media, and non-woven materials
Standard and customized filter products

Customized Configuration

We offer comprehensive, multi-language, multi-specification machine customization and production line planning services tailored to your production capacity, factory layout, and localization needs.

Process-Specific Adaptation

Equipment can be specifically adjusted and optimized to perfectly match your unique filtration production processes, production cycle time, and factory operation requirements.

Full-Cycle After-Sales Support

We provide a full range of services including installation guidance, commissioning, operation training, original spare parts supply, and lifetime maintenance and technical support.
