MOER filter testing equipment evaluates oil and fuel filters, bypass valves, filter paper and media for performance, durability, integrity and material properties.

Finished Filter & Component Testing

Production inspection for assembled oil and fuel filters and their key components.

• Dry leak and bubble-point testing
• Flow and pressure performance
• Impulse fatigue and burst strength
• Bypass valve performance

Filter Paper & Media Testing

Material inspection for filter paper and media before production and assembly.

• Thickness and tear resistance
• Pore-size measurement
• Bursting strength
• Air permeability

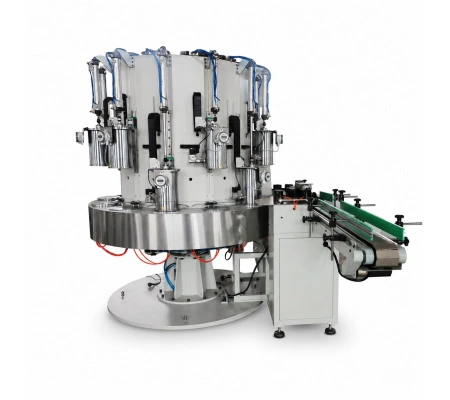

JSMRDY-20 20 Stations Spin-on Oil Filter Dry Tester

Testing Capacity: 40 pcs/min
Available Filter Diameter: Ø60–Ø105 mm
Available Filter Height: 65–180 mm

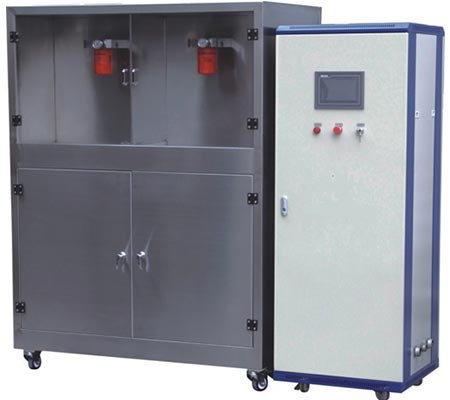

JSMRMC-2 Oil/Fuel Filter Impulse Fatigue Tester

Oil Pump Flow: 32 L/min
Test Pressure: 0–2 MPa, adjustable
Pressure Precision: Grade 1

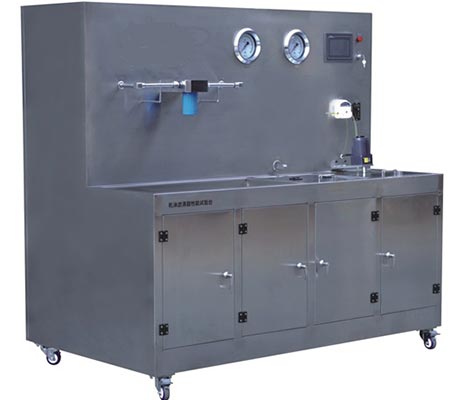

JSMRCY-200 Oil/Fuel Filter Performance Tester

Test Flow: 5–50 L/min
Flow Precision: Grade 1
Pressure Precision: Grade 0.5

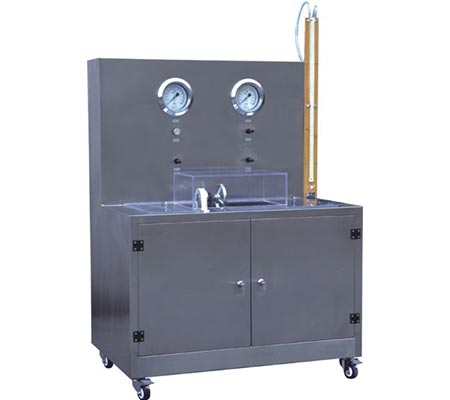

JSMRPB-1 Filter Bubble Tester

Maximum Pressure: 0.2 MPa
Maximum Diameter: Φ100 mm
Maximum Length: 350 mm

JSMRHT-1 Handheld Thickness Tester

Test Accuracy: 0.01 mm
Test Range: 0.01–4 mm

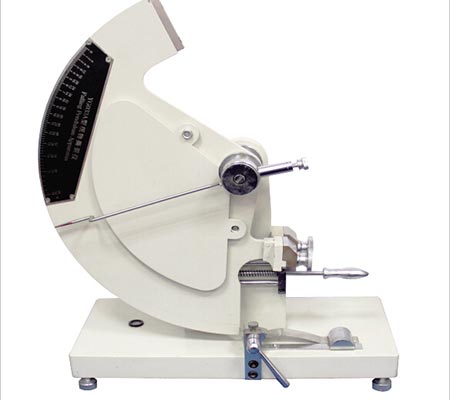

YG-33 Filter Paper Tearing Tester

Impact Pendulum: 0–16 N / 0–32 N / 0–64 N
Sample Size: 100 × 63 mm
Incision Length: 20 ± 0.5 mm
Fixture Distance: 2.8 ± 0.3 mm
Force Accuracy: ≤ ±1
Machine Size: 400 × 210 × 395 mm

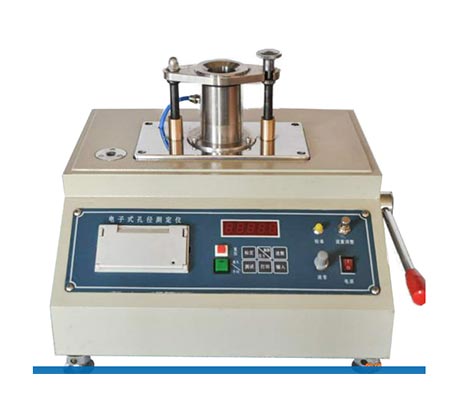

KJ-20 Filter Paper Pore Size Tester

Pore Size Range: 5–150 μm
Pressure Range: 0–20 kPa
Pressure Accuracy: ±1%
Pressure Resolution: 0.01 kPa
Test Piece Thickness: 0.10–3.5 mm
Test Area: 10 ± 0.2 cm²
Power Supply: AC220V

YG-33E Automatic Bursting Strength Tester

Bursting Range: 0–5600 kPa
Accuracy: ±0.5% FS
Resolution: 0.01 kPa
Clamping Force: >690 kPa, adjustable
Pressing Speed: 170 ± 15 ml/min

AG-461E Digital Air Permeability Tester

Air Permeability Range: 0.2–12826 mm/s
Test Accuracy: Better than ±2%
Test Pressure: 0–4000 Pa
Test Area: 5 / 20 / 38 / 50 / 100 cm²
Nozzle Quantity: 11 pcs

PT-II Bypass Valve Performance Tester

Test Flow: 0–25 L/min
Oil Pump Flow: 40 L/min
Temperature Control: Normal Temperature–100°C
Motor Power: 0.75 kW
Power Supply: 220V / 50Hz
Machine Weight: 300 kg
Machine Size: 1000 × 600 × 1560 mm

JSMPY-1 Bursting Strength Tester

Max Test Pressure: 2.5 MPa
Pressure Precision: Grade 1
Power Supply: 220V / 50Hz

Built for Real Factory Production

MOER Machine designs filter making equipment around real production needs. Our machines are built to support stable output, consistent quality, and efficient daily operation in factory environments.

Designed for Different Market Requirements

We understand that different countries and customers have different standards for voltage, safety, machine size, production capacity, and material compatibility. Our equipment can be configured to meet various overseas production requirements.

Stable Performance in Continuous Operation

For filter manufacturers, machine stability directly affects delivery time and product consistency. We focus on precise control, durable structure, and reliable running performance to support long-term continuous production.

Flexible for Different Filter Materials

Filter production often involves different materials, thicknesses, and process requirements. Our machines are designed to handle a wide range of filter applications with practical adjustment and strong adaptability.

Controlled Quality from Start to Finish

From component selection and assembly to final testing, every stage is managed under a controlled process. This helps ensure consistent machine quality and dependable performance before delivery.

Support for Long-Term Production

We do not only supply machines. We also provide technical support, commissioning guidance, and after-sales assistance to help customers maintain stable production and reduce downtime.

Applications & Materials

Suitable for a wide range of filter production applications

Air, oil, and liquid filtration
Filter paper, synthetic media, and non-woven materials
Standard and customized filter products

Customized Configuration

We offer comprehensive, multi-language, multi-specification machine customization and production line planning services tailored to your production capacity, factory layout, and localization needs.

Process-Specific Adaptation

Equipment can be specifically adjusted and optimized to perfectly match your unique filtration production processes, production cycle time, and factory operation requirements.

Full-Cycle After-Sales Support

We provide a full range of services including installation guidance, commissioning, operation training, original spare parts supply, and lifetime maintenance and technical support.
