AG-461E Digital Air Permeability Tester

Air Permeability Range: 0.2–12826 mm/s
Test Accuracy: Better than ±2%
Test Pressure: 0–4000 Pa
Test Area: 5 / 20 / 38 / 50 / 100 cm²
Nozzle Quantity: 11 pcs

Inquiry Now > >

Product Description

The AG-461E Digital Air Permeability Tester is designed for measuring the air permeability performance of filter media and other breathable materials. It supports an air permeability range of 0.2–12826 mm/s, test pressure of 0–4000 Pa, and multiple test areas including 5, 20, 38, 50, and 100 cm².

This model helps manufacturers evaluate filter paper, filter cloth, non-woven fabric, membrane, and other porous material permeability before production or quality approval. With automatic testing, computer control, 11 nozzles, English display, RS232 output, real-time curve display, and statistical analysis functions, it is suitable for laboratory testing and routine filter material quality control.

How the Machine Works

Sample preparation → Filter media, non-woven fabric, industrial filter paper, filter cloth, membrane, or other breathable material is prepared according to the required air permeability testing method.

Test area selection → The operator selects the suitable test head area according to the sample structure, material type, and required testing standard.

Pressure setting → The tester applies the required test pressure within the 0–4000 Pa range to create airflow through the material sample.

Air permeability measurement → The instrument measures airflow performance and calculates the air permeability value with automatic testing and pressure sensing control.

Data display and analysis → The test software displays results, real-time curves, and statistical values such as maximum, minimum, average, and CV for quality control records.

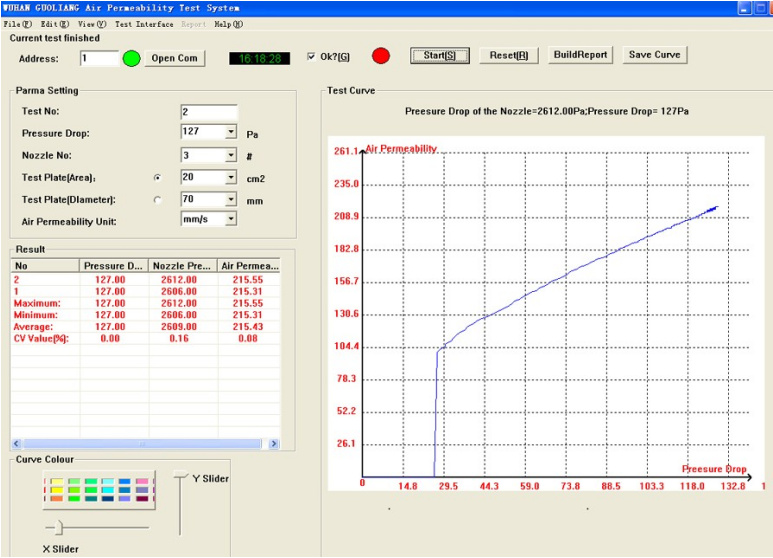

Test Software:

Technical Parameters

Model	AG-461E
Machine Type	Digital Air Permeability Tester
Function	Air permeability testing for filter media and breathable materials
Display Mode	English large screen operation
Air Permeability Range	0.2–12826 mm/s
Test Accuracy	Better than ±2% of displayed value
Test Pressure	0–4000 Pa
Test Area / Test Head	5 cm², 20 cm², 38 cm², 50 cm², 100 cm²
Nozzle Quantity	11 pcs
Nozzle Diameter	0.8 / 1.2 / 2 / 3 / 4 / 6 / 8 / 10 / 12 / 16 / 20 mm
Power Supply	AC220V ±10% 50/60Hz
Dimensions	520 × 700 × 940 mm
Weight	About 110 kg
Supported Units	mm/s, L/㎡/s, ft³/ft²/min, cm³/cm²/s, m³/m²/min, m³/m²/h, Pa

Engineering Features

Wide material compatibility

The tester is suitable for filter media, non-woven fabrics, industrial filter paper, filter cloth, microporous membrane, polyester mesh, sponge foam, coated fabrics, leather, plastics, and other breathable materials.

Automatic full-range testing

The equipment supports automatic permeability testing across a wide range, helping operators test different samples more efficiently during material inspection.

Fast test response

Micro-computer automatic control allows fast testing response, making the machine practical for routine laboratory checks and repeated quality control testing.

English display and software

The tester is equipped with English LCD display and English software, supporting easier operation for overseas laboratories and filter manufacturing plants.

Data output and computer interface

RS232 printout and computer control interface support data output, result management, and quality control record keeping.

Real-time curve and statistical analysis

The software can display real-time test curves and calculate maximum, minimum, average, and CV values, helping operators compare material performance more clearly.

What to Confirm Before Machine Selection

To confirm whether this model fits your air permeability testing process, the following details are usually needed for machine selection or technical recommendation.

✓ Required material type, such as filter paper, filter cloth, non-woven fabric, membrane, mesh, foam, or coated fabric

✓ Expected air permeability range and required test pressure condition

✓ Required test area, test head size, and sample preparation method

✓ Required measurement unit, data output method, and reporting format

✓ Whether testing is used for incoming material inspection, R&D comparison, or routine production quality control

✓ Need for English software, real-time curve display, statistical analysis, and RS232 output

✓ Laboratory power supply, testing space, sample workflow, and whether it needs to be used with other filter media testing equipment
