Product Categories
HEPA Filter Making Machine

MOER Machine provides HEPA filter making machines for separated HEPA and mini-pleat HEPA production, covering corrugating, pleating, gluing and cutting processes. The right equipment choice depends on filter structure, separator material, media width, pleat height and required output. Use the machines below to match your production process more accurately.

• Separated HEPA: corrugating and separator forming
• Mini-pleat HEPA: pleating accuracy and glue control
• Selection focus: width, pleat height, speed and output

JSMR-AUTO-400-700 Full-auto HEPA Filter Knife Pleating and Hot Melt Gluing Machine

Pleating Height: 100–400 mm

Pleating Speed: 0–200 pleats/min

Max. Media Width: 700 mm

Max. Product Width: ≤650 mm

Production Capability: 25 m/min

JSMR-AUTO-700-3000 Automatic Knife Pleating Machine

Working Width Range: 700–3000 mm

Pleating Height Range: 4–150 mm

Pleating Speed: Up to 400 pleats/min

JSMRGT-1300 Mini Pleating Machine
JSMRGT-1300 Mini Pleating Machine

Max. Media Pleating Width: 1300 mm

Pleat Depth Range: 25–300 mm

Maximum Pleating Speed: 8–10 m/min

Hot Melt Nozzle Pitch: 25.4 mm

Online Slitting Cutters: 5 pcs

JSMRGT-700 HEPA Mini Pleating Machine

Max. Media Pleating Width: 700 mm

Pleat Depth Range: 16–100 mm

Maximum Pleating Speed: 8–10 m/min

Hot Melt Nozzle Pitch: 25.4 mm

Online Slitting Cutters: 5 pcs

JSMRWG-700-II HEPA Mini Rotary Pleating and Gluing Machine

Max Width: 700 mm
Pleating Height Range: 16–100 mm
Product Speed: 15 m/min
Gluing Interval: 25.4 mm
Power Supply: 380V / 50Hz
Working Air Pressure: 0.6 MPa

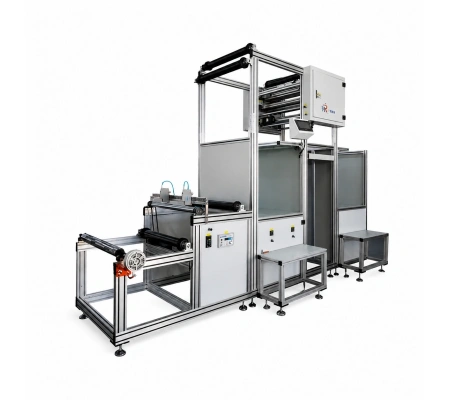

JSMRYG-650 Separated HEPA Filter Fiber Glass Pleating Machine

Pleat Height: 50–300 mm
Max. Width of Media Roll: 650 mm
Operation Speed: 7 pleats/min
Max. Diameter of Media Roll: 600 mm
Max. Length of Filter Pack: 800 mm
Max. Width of Filter Pack: 60 mm

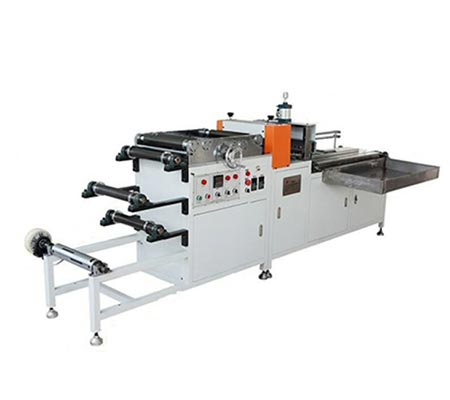

Separated HEPA Filter Corrugating Machine for Paper or Aluminum
JSMRWL-350 Separated HEPA Filter Corrugating Machine for Paper or Aluminum

Max. Width: 350 mm
Max. Coil Diameter: 1000 mm
Production Speed: 20 sheets/min or 6 m/min (based on 500 mm length)
Motor Power: 0.75 kW
Power Supply: 380V / 50Hz
Working Air Pressure: 0.6 MPa

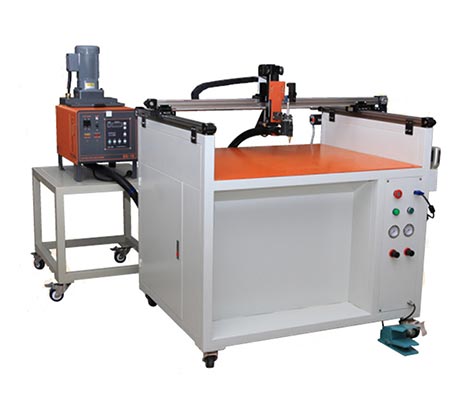

JSMRZK-800 Air Filter Frame Gluing Machine

Model: JSMRZK-800
Capacity: 8–10 pcs/min
Glue Output: Adjustable
Motor Power: 2 kW
Power Supply: AC 220V
Hot Melt Tank Capacity: 10 L
Gluing Hose Length: 3 m
Max. Gluing Size: 800 × 800 × 100 mm

Air Filter Round Cutting Machine
JSMRCT-1 Air Filter Round Cutting Machine

Capacity: 8–10 pcs/min
Motor Power: 2 kW
Power Supply: AC 220V
Cutting Size: Depends on mold

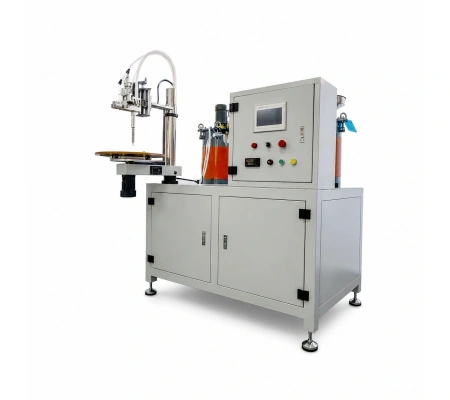

JSMRAB-2 AB Gluing Machine for Air Filter End Caps

Available Cap Diameter: ≤ Φ450 mm
Gluing Range: 10–260 g
Production Efficiency: 2–6 pcs/min
Mixing Ratio: 1:6, customizable
Machine Power: 4 kW
Working Air Pressure: 0.6 MPa
Power Supply: 380V / 50Hz

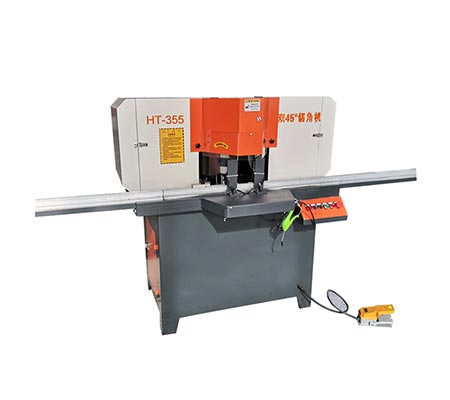

Pocket Filter Cutting Machine
JSMRLQ-1 Aluminum Filter Frame Cutting Machine

Power: 2 kW
Voltage: 380V / 50Hz
Weight: 300 kg

Our Advantages
At MOER Machine, we understand what filter manufacturers need most: stable output, easy operation, reliable quality, and machines that can adapt to different production requirements. That is why every solution we provide is built with real factory use in mind.
Built for Real Factory Production
MOER Machine designs filter making equipment around real production needs. Our machines are built to support stable output, consistent quality, and efficient daily operation in factory environments.
Designed for Different Market Requirements
We understand that different countries and customers have different standards for voltage, safety, machine size, production capacity, and material compatibility. Our equipment can be configured to meet various overseas production requirements.
Stable Performance in Continuous Operation
For filter manufacturers, machine stability directly affects delivery time and product consistency. We focus on precise control, durable structure, and reliable running performance to support long-term continuous production.
Flexible for Different Filter Materials
Filter production often involves different materials, thicknesses, and process requirements. Our machines are designed to handle a wide range of filter applications with practical adjustment and strong adaptability.
Controlled Quality from Start to Finish
From component selection and assembly to final testing, every stage is managed under a controlled process. This helps ensure consistent machine quality and dependable performance before delivery.
Support for Long-Term Production
We do not only supply machines. We also provide technical support, commissioning guidance, and after-sales assistance to help customers maintain stable production and reduce downtime.
Applications & Materials

Suitable for a wide range of filter production applications

  • Air, oil, and liquid filtration
  • Filter paper, synthetic media, and non-woven materials
  • Standard and customized filter products
Customization & Support
Customized Configuration
We offer comprehensive, multi-language, multi-specification machine customization and production line planning services tailored to your production capacity, factory layout, and localization needs.
Process-Specific Adaptation
Equipment can be specifically adjusted and optimized to perfectly match your unique filtration production processes, production cycle time, and factory operation requirements.
Full-Cycle After-Sales Support
We provide a full range of services including installation guidance, commissioning, operation training, original spare parts supply, and lifetime maintenance and technical support.
