Pleat Height: 50–300 mm
Max. Width of Media Roll: 650 mm
Operation Speed: 7 pleats/min
Max. Diameter of Media Roll: 600 mm
Max. Length of Filter Pack: 800 mm
Max. Width of Filter Pack: 60 mm

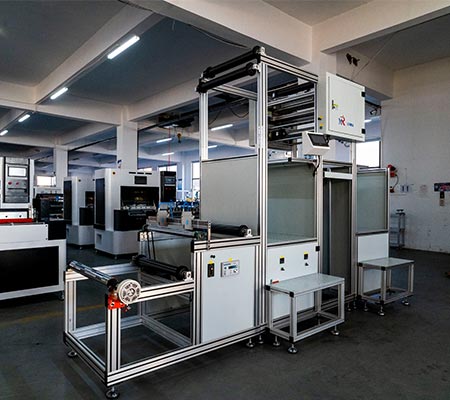

The JSMRYG-650 Separated HEPA Filter Fiber Glass Pleating Machine is designed for separated HEPA filter production using glass fiber and PP filter media. It supports a pleat height range of 50–300 mm and a maximum media roll width of 650 mm, making it suitable for deep separated filter pack forming.
This model combines filter media pleating and separator forming in one production process. It can work with aluminum foil or paper separators, helping manufacturers improve separated HEPA filter pack consistency, forming quality, and production efficiency.
Media feeding → Glass fiber or PP filter media is fed into the machine according to the required pleat height and filter pack size.
Separator forming → Aluminum foil or paper separators are corrugated and prepared to support the separated HEPA filter structure.
Media pleating → The machine pleats the filter media with controlled height to form a stable separated filter pack structure.
Heated imprinting → The heating imprint function supports media forming and helps improve the appearance and stability of the finished filter pack.
Continuous forming → Computer control and adjustable running speed help maintain stable operation under different production conditions.
| Model | JSMRYG-650 |
| Machine Type | Separated HEPA Filter Fiber Glass Pleating Machine |
| Pleat Height | 50–300 mm |
| Max. Width of Media Roll | 650 mm |
| Max. Diameter of Media Roll | 600 mm |
| Max. Width of Filter Pack | 60 mm |
| Max. Length of Filter Pack | 800 mm |
| Operation Speed | 7 pleats/min |
| Profile Size (L × W × H) | 3900 × 2200 × 2400 mm |
The machine is designed for separated HEPA filter pack production, helping form deep pleats together with separator support for stable filter structure.
The wide pleat height range allows the machine to match different separated HEPA filter specifications and deeper filter pack requirements.
Glass fiber media pleating and aluminum foil or paper separator corrugating can be completed together, reducing separate handling between process steps.
The computer control system supports flexible operation and process adjustment, helping operators manage speed, forming status, and production stability.
The frequency converter control helps adjust the running speed according to media condition, filter specification, and operator requirements.
The heated imprinting function supports filter media forming and helps improve the appearance and consistency of separated HEPA filter packs.
To confirm whether this model fits your separated HEPA filter production line, the following details are usually needed for machine selection or technical recommendation.
