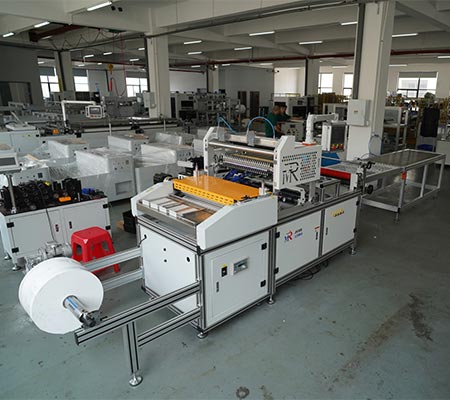

JSMRWG-700-II HEPA Mini Rotary Pleating and Gluing Machine
Max Width: 700 mm
Pleating Height Range: 16–100 mm
Product Speed: 15 m/min
Gluing Interval: 25.4 mm
Power Supply: 380V / 50Hz
Working Air Pressure: 0.6 MPa
The JSMRWG-700-II HEPA Mini Rotary Pleating and Gluing Machine is designed for HEPA filter media pleating and hot melt gluing in one continuous production line. It supports a maximum working width of 700 mm, a pleating height range of 16–100 mm, and a product speed of 15 m/min.
This model integrates pleating, glue dispensing, cooling, cutting, and trimming into one process. It is suitable for manufacturers who need stable mini-pleat forming, flexible hot melt control, and continuous HEPA filter pack production with reduced manual handling.
Media feeding → Filter media is fed into the rotary pleating section according to the required width, pleat height, and production setup.
Rotary pleating → The rotary pleating system forms continuous mini pleats with controlled height and stable spacing.
Hot melt gluing → Glue lines are applied at the required interval to help stabilize pleat structure and reduce deformation after forming.
Cooling and drying → Conveyor and cooling fans help support faster glue setting and more stable filter pack handling.
Cutting and trimming → Cutting and trimming devices prepare the pleated media for the next production step or required filter specification.
| Model | JSMRWG-700-II |
| Machine Type | HEPA Mini Rotary Pleating and Gluing Machine |
| Max Width | 700 mm |
| Pleating Height Range | 16–100 mm |
| Product Speed | 15 m/min |
| Gluing Interval | 25.4 mm |
| Number of Gluing Lines | 2 × 26 |
| Power Supply | 380V / 50Hz |
| Main Power | 16 kW |
| Working Air Pressure | 0.6 MPa |
| Machine Weight | 700 kg |
| Hot Melt Machine Dimension | 900 × 1000 × 1500 mm |
| Main Machine Dimension | 7500 × 1050 × 1500 mm |
The rotary pleating structure supports continuous mini-pleat forming for HEPA filter media, helping maintain stable pleat height and production consistency.
The machine combines pleating and hot melt dispensing in one production line, reducing separate handling between forming and gluing steps.
Continuous and intermittent hot melt patterns are available, and the glue bead position can be adjusted during machine operation.
The conveyor belt, cooling fans, cutting device, and trimming device support glue setting, media handling, and preparation for different filter specifications.
The automatic control system and touch screen interface make parameter setting, production adjustment, and daily operation more convenient.
Pleat travel distance, glue amount, roller setup, and related process settings can be adjusted to match different HEPA filter production requirements.
