If you are just starting filter production, or your orders are still small but cover different filter sizes, this plan is a practical choice. You do not need to build a complete production line at the beginning. You can start with key machines first, learn the process step by step, and add more equipment when your orders become stable.
We recommend this option for customers who want to start with controlled investment and keep enough flexibility for HEPA filters, HVAC filters, cabin filters, PU air filters and other pleated filter products.
For this plan, we suggest starting with flexible and easy-to-use machines. It is suitable for sample development, small orders and frequent size changes.

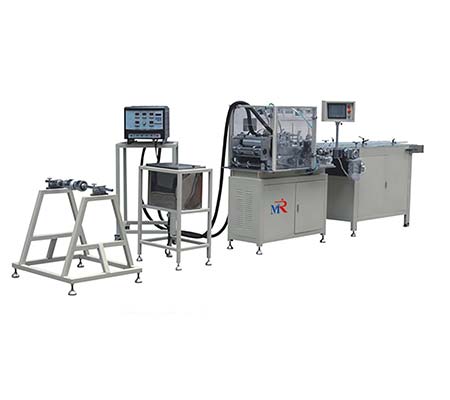

Working Width: 90–320 mm
Pleating Height: 20–58 mm
Production Speed: 5–25 m/min
Temperature Range: 0–300°C
Power Supply: 380V / 50Hz
Working Air Pressure: 0.6 MPa

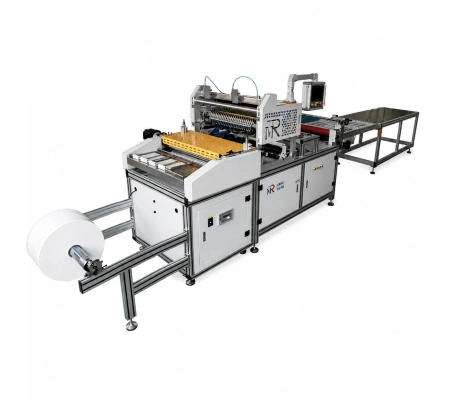

Max Width: 700 mm
Pleating Height Range: 16–100 mm
Product Speed: 15 m/min
Gluing Interval: 25.4 mm
Power Supply: 380V / 50Hz
Working Air Pressure: 0.6 MPa

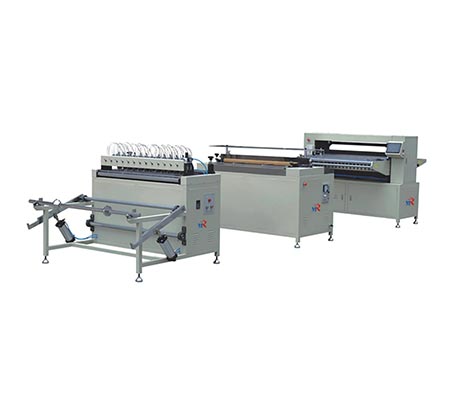

Max. Width: 800 mm
Adjustable Pleating Height: 8–100 mm
Pleating Speed: 0–200 pleats/min
Power Supply: 220V / 50Hz, Single Phase
Heating Temperature: Normal Temperature–200°C
Working Air Pressure: 0.6 MPa
Product Capacity: 20 pcs/min
Work Length: 650 mm
Product Width: 700 mm
