Max. Width: 800 mm
Adjustable Pleating Height: 8–100 mm
Pleating Speed: 0–200 pleats/min
Power Supply: 220V / 50Hz, Single Phase
Heating Temperature: Normal Temperature–200°C
Working Air Pressure: 0.6 MPa

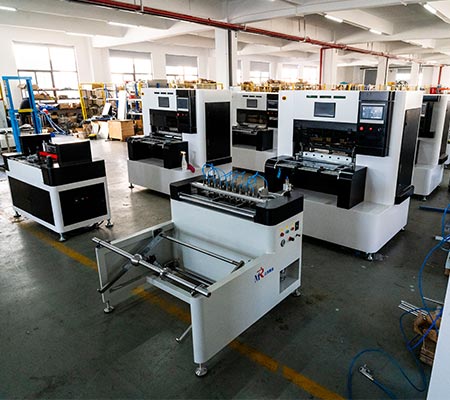

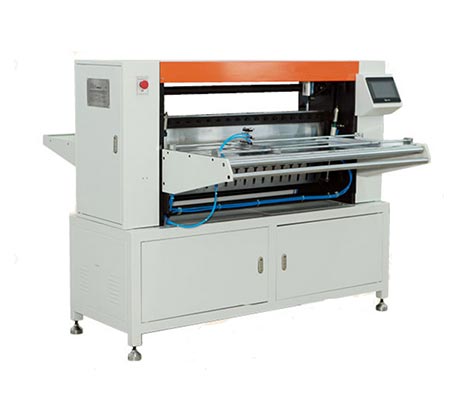

The JSMRK2-100-800 Mesh Knife Pleating Machine is designed for pleating filter paper and related media in HVAC filter production. It supports a maximum width of 800 mm, adjustable pleating height from 8 mm to 100 mm, and pleating speed up to 200 pleats/min.
This model integrates pre-slitting, marking, knife pleating, and pre-heating functions in one compact process. It helps manufacturers improve pleat height control, folding consistency, and production efficiency for different HVAC filter media specifications.
Media feeding → Filter paper or related media is fed into the machine according to the required width, pleat height, and production setup.
Pre-slitting → The pre-slitting function prepares the material according to different filter sizes before pleating.
Marking control → The marking system sets the required pleat size through the control screen for more accurate pleat spacing.
Knife pleating → Upper and lower blades work alternately to form stable and even pleats automatically.
Pre-heating → After marking and pleating, the filter media is pre-heated to support more stable forming performance.
| Model | JSMRK2-100-800 |
| Machine Type | Mesh Knife Pleating Machine |
| Max. Width | 800 mm |
| Adjustable Pleating Height | 8–100 mm |
| Pleating Speed | 0–200 pleats/min |
| Power Supply | 220V / 50Hz, Single Phase |
| Motor Power | 0.75 kW |
| Heater Power | 2 kW |
| Heating Temperature | Normal Temperature–200°C |
| Working Air Pressure | 0.6 MPa |
| Machine Weight | 500 kg |
| Machine Size | 1670 × 1200 × 1240 mm |
| Suitable Media | Paper media and related filter materials |
The machine includes pre-slitting for different filter sizes, while the feeding conveyor works synchronously with the marking system for smoother production.
The marking system can set different pleat sizes through the control screen, helping achieve accurate marking distance and consistent pleating results.
Upper and lower blades work alternately to complete folding, allowing pleating heights to be formed evenly and accurately.
The pleating blade height can be adjusted automatically without manual adjustment, making operation more convenient and efficient.
After marking, the filter media is pleated and pre-heated, helping support more stable forming performance and improved folding quality.
The machine is suitable for filter paper and can also support wire-supported fabric, non-woven fabric, and multi-layer folding in related filter applications.
To confirm whether this model fits your HVAC filter media pleating process, the following details are usually needed for machine selection or technical recommendation.
