Materials Width: ≤ 1000 mm
Production Capacity: 3 m/min
Materials Coil Diameter: ≤ Φ800 mm
Heating Power: 3 kW
Power Supply: 380V / 50Hz
Working Air Pressure: 0.6 MPa

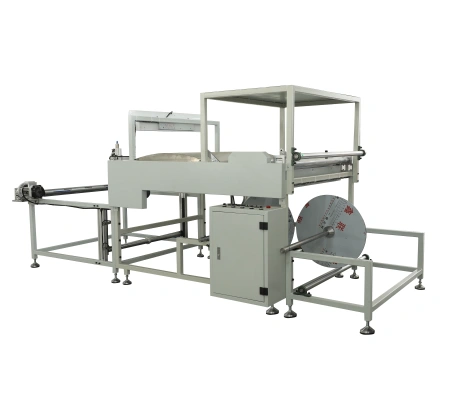

JSMRFH-1000 Filter Materials Compositing Machine
Materials Width: ≤ 1000 mm
Production Capacity: 3 m/min
Materials Coil Diameter: ≤ Φ800 mm
Heating Power: 3 kW
Power Supply: 380V / 50Hz
Working Air Pressure: 0.6 MPa
The JSMRFH-1000 Filter Materials Compositing Machine is designed for hot melt bonding of non-woven fabric and wire mesh in HVAC filter production. It supports material widths up to 1000 mm, automatic compositing, adjustable running speed, and stable bonding performance for primary and medium efficiency filter materials.
This model helps manufacturers produce neat and firmly bonded composite filter media with better consistency and reduced manual handling. With adjustable gluing temperature and frequency converter speed control, it is suitable for filter material preparation processes that require stable bonding quality and continuous operation.
Material feeding → Non-woven fabric and wire mesh are fed into the machine according to the required material width, coil diameter, and production setup.
Hot melt preparation → The gluing temperature can be adjusted according to different material conditions and bonding requirements.
Material compositing → The machine completes hot melt bonding of non-woven fabric and mesh to form composite filter media.
Speed adjustment → The running speed can be adjusted by frequency converter to match different production conditions.
Finished media output → The bonded filter material is output with a neater and firmer composite structure for the next filter production step.
| Model | JSMRFH-1000 |
| Machine Type | Filter Materials Compositing Machine |
| Materials Width | ≤ 1000 mm |
| Production Capacity | 3 m/min |
| Materials Coil Diameter | ≤ Φ800 mm |
| Heating Power | 3 kW |
| Motor Power | 0.75 kW |
| Power Supply | 380V / 50Hz |
| Working Air Pressure | 0.6 MPa |
| Machine Weight | 500 kg |
| Machine Size | 4000 × 1000 × 1250 mm |
The machine automatically completes the bonding of non-woven fabric and wire mesh, helping reduce manual handling and improve production efficiency.
The hot melt bonding process helps produce composite filter materials with a neater structure and more stable bonding strength.
The working speed can be adjusted by frequency converter, making it easier to match different material conditions and production requirements.
The gluing temperature can be set according to different materials and bonding requirements, supporting more flexible process control.
The machine is designed for hot melt bonding of non-woven fabric and mesh used in primary and medium efficiency HVAC filter material production.
The practical structure and adjustable process settings help support stable continuous operation in filter material preparation lines.
To confirm whether this model fits your HVAC filter material production process, the following details are usually needed for machine selection or technical recommendation.
