Truck Filter Making Machine for Heavy-Duty Air Filters

Product Categories

By Filter Type Application

By Filter Production Process

MOER truck filter making machines cover the production of heavy-duty engine air filters, from media pleating and mesh forming to gluing, banding and curing.

The equipment produces cylindrical filter elements with pleated media, inner and outer metal supports, spiral tubes and bonded end caps for demanding engine air-intake systems.

Adjustable working widths, pleat heights, tube diameters and filter lengths cover a broad range of heavy-duty air filter specifications. Controlled heating, adhesive output and forming dimensions support repeatable pleat geometry, tube shape and end-cap bonding.

The finished filters are used in engine air-intake systems for heavy-duty trucks, buses, construction machinery, agricultural equipment and other on-road or off-road applications exposed to high dust loads and long operating cycles.

JSMRGT-600 Filter Paper Rotary Pleating Machine

Product Capability: 0–35 m/min
Width Range: 30–1000 mm
Pleat Height Range: 12–60 mm
Temperature Control: 0–300°C
Main Power: 12 kW

JSMRUZ-60 Filter Paper Assembling Machine

Capacity: 8 pcs/min
Air Pressure: 0.6 MPa
Power: 220V / 50Hz
Product Max Width: 600 mm / 800 mm / 1000 mm

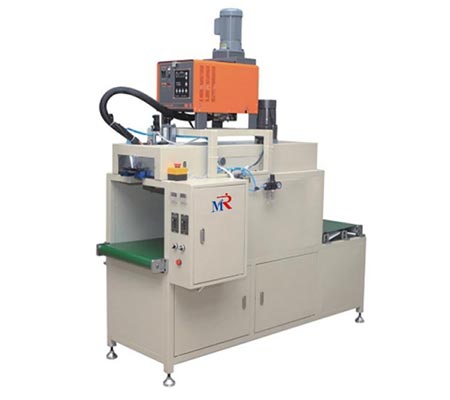

Air Filter Paper to Paper Hotmelt Clipping Machine

Product Capacity: 25 pcs/min
Filter Paper Height: ≤ 100 mm
Hot Melt Applicator Capacity: 10 kg
Hot Melt Applicator Heat Power: 6 kW

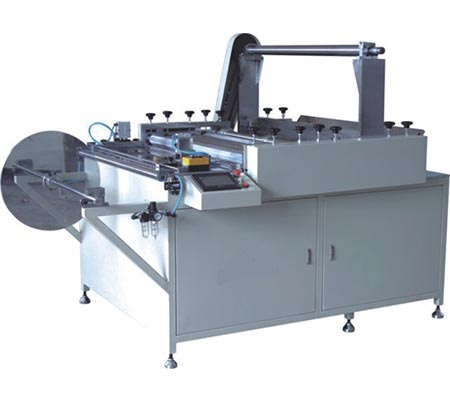

JSMRAT-1000 Truck Air Filter Mesh Cutting & Rolling Machine

Product Capacity: 15 pcs/min
Crimping Height: 1000 mm
Roll Diameter: Φ80–350 mm
Steel Plate Thickness: 0.3–1.2 mm

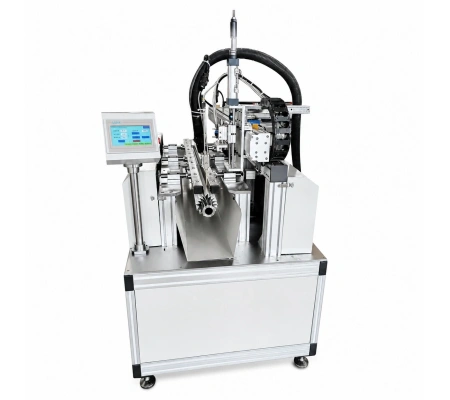

JSMRRZ-1000N Muti-layers Mesh Horizontal Hotmelt Gluing Machine

Hot Melt Machine Capacity: 10 kg
Heating Power: 6 kW
Air Pressure: 0.6 MPa
Supply Voltage: 380V / 50Hz

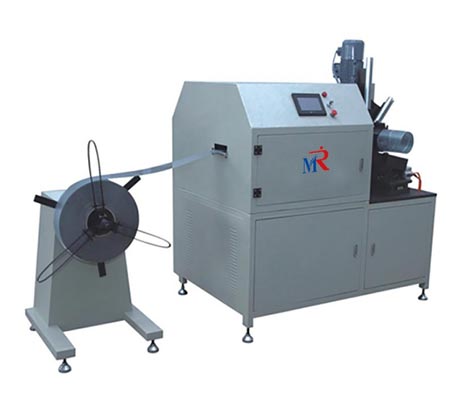

JSMRJW-500 Full-auto Air Filter Spiral Machine with Already Expanded Mesh

Roll Diameter: Φ80–500 mm
Product Capacity: 10–20 pcs/min
Diamond Mesh Width: 109 mm
Steel Plate Thickness: 0.25–0.4 mm

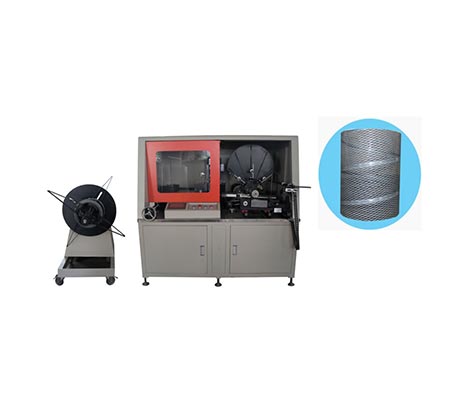

JSMRJW-450 Auto Air Filter Spiral Machine with Metal Strips

Tube Diameter: Φ120–420 mm
Production Capacity: about 13 m/min
Tube Length: Adjustable
Steel Strip Thickness: 0.4–1 mm

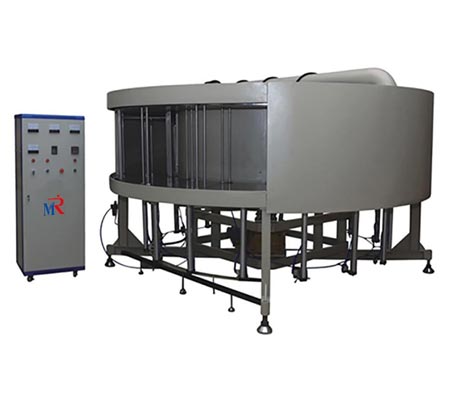

16-Station Truck Air Filter Turntable Curing Oven

Seal Speed: 180 pcs/h
Filter Height: 500 mm
Diameter Range: Φ450 mm
Temperature Range: RT–250°C

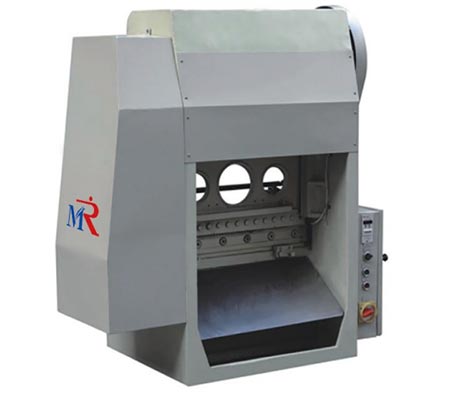

JSMRLW-600 Filter Mesh Expanding Machine

Width: ≤ 600 mm
Sheet Thickness: 0.3–1 mm
Speed: 200 pcs/min
Motor Power: 2.2 kW
Power Supply: 380V / 50Hz

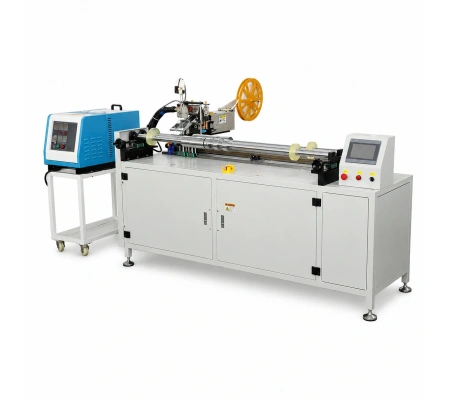

JSMRCZ55-2000 Filter Banding Machine

Max. Diameter: 500 mm
Max. Filter Length: 2 m
Capacity: 6 pcs/min
Hot Melt Tank: 10 L
Machine Power: 3 kW
Power Supply: 380V / 220V / 240V

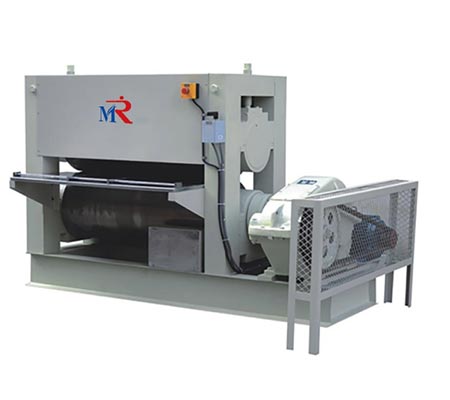

JSMRPMF-1200 Mesh Flattening Machine

Max. Mesh Width: ≤ 1200 mm
Mesh Thickness: 0.3–1 mm
Shaft Speed: 8 circles/min

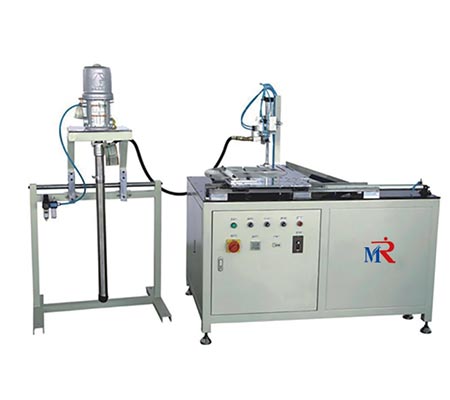

JSMRPVC-1 PVC Caps Gluing Machine

End Cap Outer Diameter: ≤ 500 mm
Gluing Width: ≤ 50 mm
Production Capability: 4 pcs/min

Built for Real Factory Production

MOER Machine designs filter making equipment around real production needs. Our machines are built to support stable output, consistent quality, and efficient daily operation in factory environments.

Designed for Different Market Requirements

We understand that different countries and customers have different standards for voltage, safety, machine size, production capacity, and material compatibility. Our equipment can be configured to meet various overseas production requirements.

Stable Performance in Continuous Operation

For filter manufacturers, machine stability directly affects delivery time and product consistency. We focus on precise control, durable structure, and reliable running performance to support long-term continuous production.

Flexible for Different Filter Materials

Filter production often involves different materials, thicknesses, and process requirements. Our machines are designed to handle a wide range of filter applications with practical adjustment and strong adaptability.

Controlled Quality from Start to Finish

From component selection and assembly to final testing, every stage is managed under a controlled process. This helps ensure consistent machine quality and dependable performance before delivery.

Support for Long-Term Production

We do not only supply machines. We also provide technical support, commissioning guidance, and after-sales assistance to help customers maintain stable production and reduce downtime.

Applications & Materials

Suitable for a wide range of filter production applications

Air, oil, and liquid filtration
Filter paper, synthetic media, and non-woven materials
Standard and customized filter products

Customized Configuration

We offer comprehensive, multi-language, multi-specification machine customization and production line planning services tailored to your production capacity, factory layout, and localization needs.

Process-Specific Adaptation

Equipment can be specifically adjusted and optimized to perfectly match your unique filtration production processes, production cycle time, and factory operation requirements.

Full-Cycle After-Sales Support

We provide a full range of services including installation guidance, commissioning, operation training, original spare parts supply, and lifetime maintenance and technical support.
