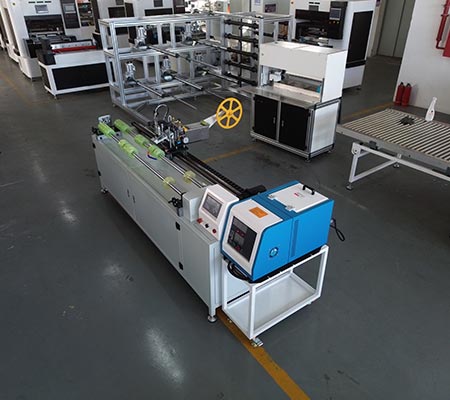

JSMRCZ55-2000 Filter Banding Machine
Max. Diameter: 500 mm
Max. Filter Length: 2 m
Capacity: 6 pcs/min
Hot Melt Tank: 10 L
Machine Power: 3 kW
Power Supply: 380V / 220V / 240V
The JSMRCZ55-2000 Filter Banding Machine is designed for banding and securing filter elements in truck filter production. It supports a maximum filter diameter of 500 mm, maximum filter length of 2 m, and stable banding operation for large-size truck air filter elements.
This model helps manufacturers improve filter banding consistency, reduce manual securing variation, and support more efficient truck filter assembly. With adjustable diameter setting, stable nylon wheel positioning, integrated cutting mechanism, and hot melt tank configuration, it is suitable for continuous filter element banding in truck air filter manufacturing.
Filter positioning → The truck filter element or filter roll is placed on the transverse rollers according to the required diameter, length, and banding position.
Diameter adjustment → The front and rear hand wheels are adjusted according to the filter diameter to help match different filter specifications.
Filter clamping → Four nylon wheels hold and position the filter tightly during the banding process, helping improve banding stability.
Hot melt banding → The hot melt tank supplies adhesive for securing the banding area and supporting stable filter element fixing.
Cutting and output → The independent rear cutting mechanism helps complete the banding process more efficiently before the finished filter is removed for the next step.
| Model | JSMRCZ55-2000 |
| Machine Type | Filter Banding Machine |
| Function | Filter element banding and securing |
| Max. Diameter | 500 mm |
| Max. Filter Length | 2 m |
| Capacity | 6 pcs/min |
| Hot Melt Tank | 10 L |
| Machine Power | 3 kW |
| Power Supply | 380V / 220V / 240V |
The machine is used for banding and securing filter elements or filter rolls, helping complete an important assembly step in truck filter production.
The front and rear hand wheels can be adjusted according to the filter diameter, making the machine suitable for different large-size filter specifications.
Four nylon wheels are used as retainers to position and clamp the filter tightly during operation, helping improve banding stability and consistency.
The two transverse rollers support the filter element during banding, helping maintain smoother rotation and more stable product handling.
An independent cutting mechanism is installed at the rear of the machine, helping complete the banding process more efficiently and reduce separate cutting work.
The machine uses electric power and compressed air as its power source, supporting practical industrial operation in truck filter assembly workshops.
To confirm whether this model fits your truck filter banding process, the following details are usually needed for machine selection or technical recommendation.
