MOER Toyota air filter making machines cover heat jointing, edge trimming, media pleating, ink-jet printing and film packaging for Toyota-style air filter elements.

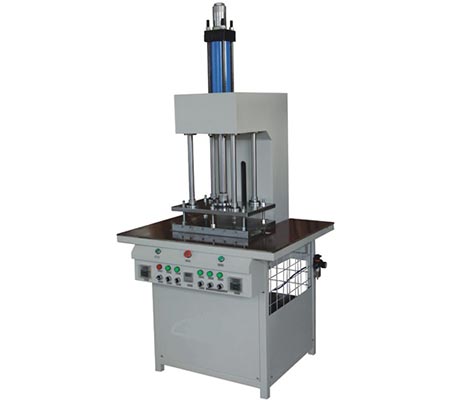

• Heat forming and trimming: Heat and join non-woven filter media, then trim the formed edges to the required profile.

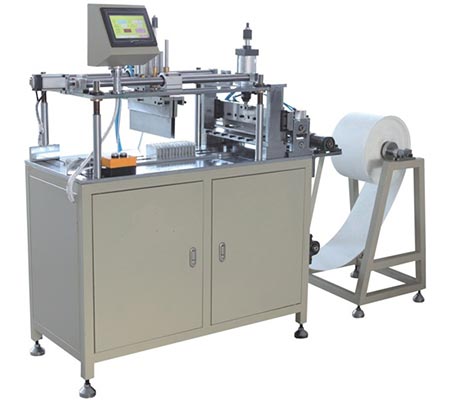

• Media preparation: Process thermal cotton and form consistent pleats for the required filter structure.
• Identification and packing: Print product codes or specifications, then apply protective film packaging.
Product Capacity: 70 pcs/hour
Heating Power: 6 kW
Machine Size: 1000 × 1050 × 2500 mm

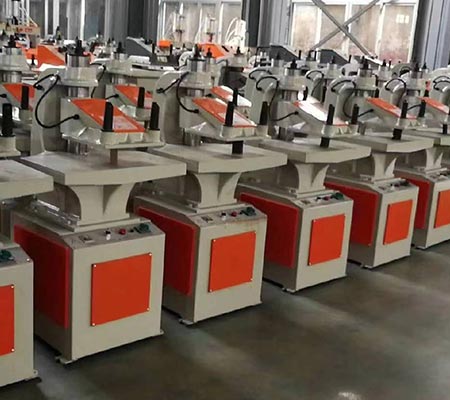

Production Capacity: 0.008 m/s
Max. Cutting Force: Up to 300 kN
Stamping Adjustment Range: 5–60 mm
Board to Workbench Distance: 40–140 mm
Product Capacity: 3 pcs/min
Element Width: 380 mm
Element Diameter: 900 mm

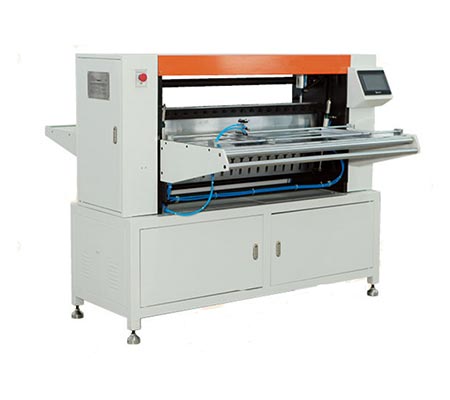

Max Width: 800 mm
Adjustable Pleating Height: 8–100 mm
Pleating Speed: 0–200 pleats/min

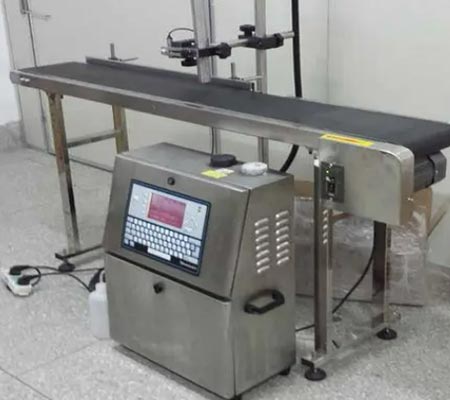

Printing Lines: 3 lines
Character Height: 0.8–12 mm
Product Speed: up to 300 m/min
Printing Speed: up to 2136 characters/sec

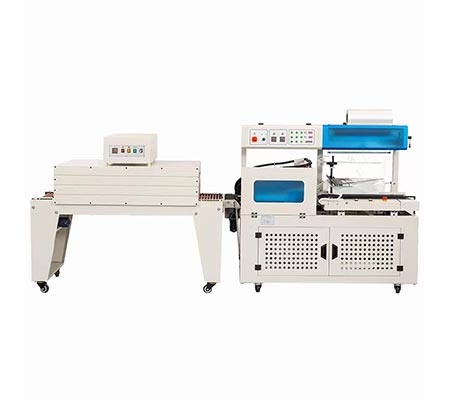

Capacity: 0–30 pcs/min
Film Thickness: 0.012–0.06 mm
Max Product Size: L550 × W450 mm
Seaming Time: 0.2–1 s
