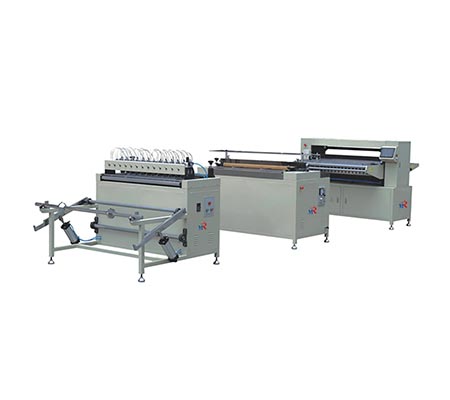

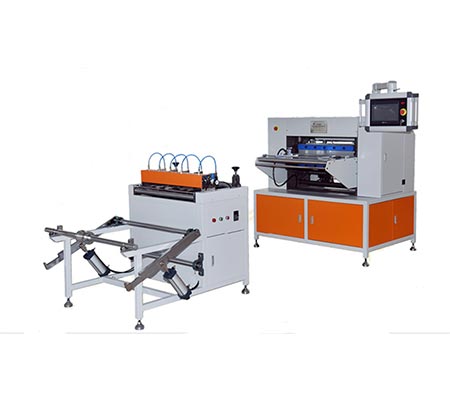

JSMRK2-100-800 Mesh Knife Pleating Machine
Max Width: 800 mm
Adjustable Pleating Height: 8–100 mm
Pleating Speed: 0–200 pleats/min
The JSMRK2-100-800 Mesh Knife Pleating Machine is designed for filter paper pleating in Toyota air filter production. It supports 800 mm maximum width, 8–100 mm adjustable pleating height, and 0–200 pleats/min pleating speed for stable automotive filter media folding.
This model helps manufacturers improve pleat height consistency, folding accuracy, and production flexibility for Toyota air filter media processing. With automatic knife pleating, auto blade height adjustment, heating support, and compatibility with paper and related filter materials, it is suitable for routine pleating work in automotive air filter production lines.
Media feeding → Filter paper or suitable filter media is fed into the machine according to the required width, pleat height, and Toyota air filter production setup.
Heating preparation → The material can be heated within the normal temperature to 200°C range to support more stable forming during pleating.
Blade height adjustment → The pleating blade height is adjusted automatically according to the required pleat depth, reducing repeated manual adjustment.
Knife pleating → Upper and lower blades work alternately to fold the media into even and accurate pleats.
Pleated media output → After pleating, the finished media is prepared for downstream jointing, trimming, assembly, inspection, or other Toyota air filter production steps.
| Model | JSMRK2-100-800 |
| Machine Type | Mesh Knife Pleating Machine |
| Function | Filter paper pleating for Toyota air filter production |
| Max Width | 800 mm |
| Adjustable Pleating Height | 8–100 mm |
| Pleating Speed | 0–200 pleats/min |
| Power Supply | 220V / 50Hz, Single Phase |
| Motor Power | 0.75 kW |
| Heater Power | 2 kW |
| Heating Temperature | Normal Temperature–200°C |
| Working Air Pressure | 0.6 MPa |
| Machine Weight | 500 kg |
| Machine Size | 1670 × 1200 × 1240 mm |
| Media | Any paper |
Upper and lower blades work alternately to complete filter media folding automatically, helping improve pleating consistency in Toyota air filter production.
Different pleating heights can be formed evenly and accurately through automatic blade distance adjustment, supporting Toyota air filter media with varied pleat specifications.
The pleating blade height can be adjusted automatically without manual adjustment, making production changeover and daily operation more convenient.
The heating temperature range from normal temperature to 200°C helps improve media forming stability and reduce pleat shape variation during folding.
The machine is mainly suitable for paper media and can also be used for iron wire fabric, non-woven fabric, and multilayer folding in related filter applications.
The pleating line can be customized by machine width and pleat height, and it can also support M type pleating according to product requirements.
To confirm whether this model fits your Toyota air filter pleating process, the following details are usually needed for machine selection or technical recommendation.
