Printing Lines: 3 lines
Character Height: 0.8–12 mm
Product Speed: up to 300 m/min
Printing Speed: up to 2136 characters/sec

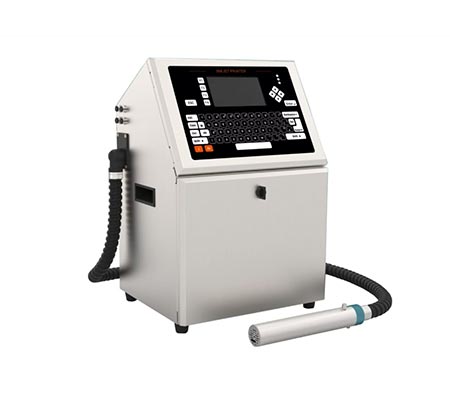

JSMRPM-1200 Filter Ink-Jet Printing Machine
Printing Lines: 3 lines
Character Height: 0.8–12 mm
Product Speed: up to 300 m/min
Printing Speed: up to 2136 characters/sec
JSMRPM-1200 Filter Ink-Jet Printing Machine is designed for coding and marking on filter products in Toyota air filter production. It can be used to print production dates, batch numbers, logos, and other product information on the filter surface. With high-speed printing performance, flexible character settings, and message storage functions, the machine helps improve product identification, traceability, and production efficiency.
|
Parameter |
Value |
|
Nozzle |
Constant temperature |
|
Nozzle Diameter |
41 mm |
|
Nozzle Length |
260 mm |
|
Throat Length |
2700 mm |
|
Throat Diameter |
21 mm |
|
Bending Radius |
150 mm |
|
Power Supply |
100–240VAC, 50Hz |
|
Power |
120–150W |
|
Net Weight |
27 kg |
|
Temperature / Humidity Range |
5°C–45°C |
|
Printing Lines |
3 |
|
Character Height |
0.8–12 mm |
|
Product Speed |
Up to 300 m/min |
|
Printing Speed |
Up to 2136 characters/sec |
|
Message Storage |
100 messages |
|
Characters per Page |
250 |
|
Logo Storage |
30 logotypes |
|
Head-to-Product Distance |
90 mm |
Three-Line Printing
Supports 3 printing lines for more complete product information.
Flexible Character Size
Character height can be adjusted from 0.8 mm to 12 mm.
High-Speed Printing Performance
Suitable for production line speeds up to 300 m/min.
Fast Printing Response
Printing speed can reach up to 2136 characters per second.
Message and Logo Storage
Can store 100 messages and 30 logotypes for convenient production switching.
Multiple Font Matrix Options
Supports 5×5, 7×5, 9×7, 15×10, and 16×10 formats.
Counter Function
Supports incremental and decremental counters up to 9 digits.
Print in All Directions
Can adapt to different product positions and marking requirements.
Constant Temperature Nozzle
Helps maintain more stable printing performance.
• Date and batch code printing for Toyota air filters
• Logo and identification marking on filter products
• Product traceability printing in automotive air filter production lines
