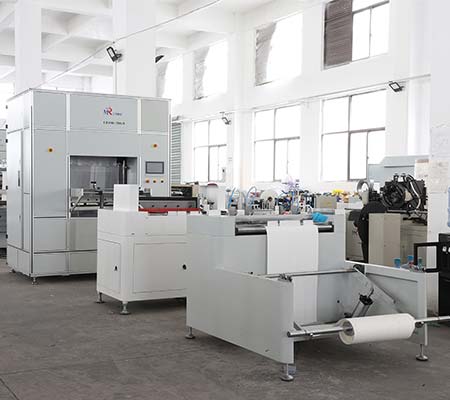

JSMR-AUTO-400-700 Full-auto HEPA Filter Knife Pleating and Hot Melt Gluing Machine
Pleating Height: 100–400 mm
Pleating Speed: 0–200 pleats/min
Max. Media Width: 700 mm
Max. Product Width: ≤650 mm
Production Capability: 25 m/min
The JSMR-AUTO-400-700 is a full-auto HEPA filter knife pleating and hot melt gluing machine for deep-pleat filter pack production. It combines media feeding, preheating, knife pleating, glue line application, and automatic counting in one continuous process.
This model is designed for manufacturers who need stable pleat height, accurate glue spacing, and consistent forming quality. By integrating pleating and gluing into one machine, it helps reduce separate process handling and supports more stable HEPA filter pack production.
Media feeding → Filter media is fed into the machine according to the required working width and roll setup.
Preheating → The heating system prepares the media for more stable pleat forming before folding.
Knife pleating → Upper and lower blades form deep pleats with controlled spacing and stable height.
Hot melt gluing → Glue lines are applied during production to help hold the pleat structure in position.
Automatic counting → Dot counting and continuous operation support more consistent batch production.
| Model | JSMR-AUTO-400-700 |
| Machine Type | Full-auto Knife Pleating Machine + Hot Melt Gluing Machine |
| Pleating Speed | 0–200 pleats/min |
| Adjustable Pleating Height | 100–400 mm |
| Max. Media Width | 700 mm |
| Max. Product Width | ≤650 mm |
| Paper Roll Diameter | ≤700 mm |
| Production Capability | 25 m/min |
| Distance Between Gluing Lines | 25.4 mm |
| Number of Gluing Lines | 2 × 26 lines |
| Operating Temperature | Up to 250°C |
| Pleating Machine Motor Power | 8 kW |
| Pleating Machine Heating Power | 8 kW |
| Hot Melt Applicator Pre-heating Power | 18 kW |
| Gluing Machine Motor Power | 1.5 kW |
| Working Air Pressure | 0.6 MPa |
| Power Supply | 380V / 220V / 50Hz |
| Machine Weight | Approx. 1500 kg |
| Machine Size | 2600 × 1600 × 1800 mm |
The knife pleating system helps form stable deep pleats and maintain consistent pleat height during HEPA filter pack production.
Hot melt glue lines are applied during pleating to support pleat fixing and reduce deformation after forming.
Pleating height, media width, and glue line configuration can be adjusted within the machine range for different HEPA filter specifications.
The adjustable blade angle helps reduce stress on the filter media during folding and supports smoother forming quality.
Automatic feeding, pleating, gluing, and counting help improve production consistency and reduce manual adjustment.
To confirm whether this model fits your production line, the following details are usually needed for machine selection or technical recommendation.
