Capacity: 0–30 pcs/min
Film Thickness: 0.012–0.06 mm
Max Product Size: L550 × W450 mm
Seaming Time: 0.2–1 s

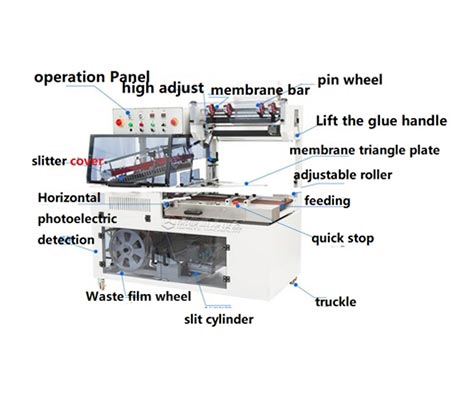

JSMR-BZJ-1 Filter Film Packaging Machine
Capacity: 0–30 pcs/min
Film Thickness: 0.012–0.06 mm
Max Product Size: L550 × W450 mm
Seaming Time: 0.2–1 s
The JSMR-BZJ-1 Filter Film Packaging Machine is designed for film wrapping, heat sealing, and packaging of Toyota air filter products. It supports 0–30 pcs/min adjustable capacity, 0.012–0.06 mm film thickness, L550 × W450 mm maximum product size, and 0.2–1 s seaming time.
This model helps manufacturers improve packaging efficiency, sealing consistency, and finished product appearance before storage or delivery. With cross cut heating, slit heating, frequency-controlled transfer, automatic temperature control, cooling support, and precise film transfer control, it is suitable for automatic film packaging in Toyota air filter production lines.
Air filter loading → Toyota air filter products are fed into the packaging position according to the required product size, film thickness, and packaging layout.
Film transfer control → The membrane transfer system controls film feeding length to match the product size and reduce unnecessary film waste during production.
Heat sealing → Cross cut heating and slit heating complete the film sealing process, helping wrap and protect the air filter product.
Shrinking and cooling → Thermal air circulation supports the shrink effect, while the cooling system helps the packaged product keep a better finished shape.
Finished product output → After film packaging, the air filter product is prepared for inspection, boxing, storage, or downstream packaging workflow.
| Model | JSMRBZJ |
| Machine Type | Filter Film Packaging Machine |
| Function | Film wrapping, heat sealing, and packaging for Toyota air filter products |
| Capacity | 0–30 pcs/min |
| Film Thickness | 0.012–0.06 mm |
| Max Product Size | L550 × W450 mm |
| Seaming Time | 0.2–1 s |
| Cross Cut Heating Power | 1100 W |
| Slit Heating Power | 800 W |
| Air Pressure | 5–6 kg/cm² |
| Machine Size | 1760 × 940 × 1580 mm |
The machine is used for wrapping and heat sealing air filter products, helping protect the product surface and improve finished packaging appearance.
Cross cut heating and slit heating support reliable sealing during film packaging, helping maintain more consistent package closure quality.
The double fan carrying system helps improve packaging stability and supports smoother product movement during the heat shrinking and sealing process.
Automatic temperature control helps keep heating conditions more stable, reducing packaging variation caused by unstable heat during repeated production.
The frequency-controlled transfer system supports adjustable running speed, making it easier to match different air filter sizes and packaging rhythms.
The thermal passage with centrifugal hot air circulation helps distribute heat more evenly and improve the shrink effect around the packaged product.
The inductive switch controls membrane transfer length more reliably, helping reduce film loss and improve packaging consistency during daily production.
To confirm whether this model fits your Toyota air filter film packaging process, the following details are usually needed for machine selection or technical recommendation.
