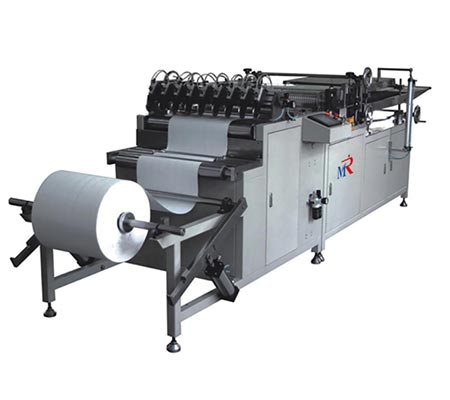

JSMRGT-600 Filter Paper Rotary Pleating Machine
Product Capability: 0–35 m/min
Width Range: 30–1000 mm
Pleat Height Range: 12–60 mm
Temperature Control: 0–300°C
Main Power: 12 kW
The JSMRGT-600 Filter Paper Rotary Pleating Machine is designed for rotary pleating and heat forming of filter paper in truck filter production. It supports a product capability of 0–35 m/min, paper width from 30 mm to 1000 mm, and pleat height from 12 mm to 60 mm.
This model integrates paper decoiling, pre-slitting, pre-heating, steam treatment, marking, collecting, rotary pleating, heat forming, and conveying into one continuous line. It helps manufacturers improve filter paper pleating efficiency, pleat consistency, and continuous truck filter production stability.
Paper decoiling → Filter paper is fed into the machine according to the required width, pleat height, and truck filter production setup.
Pre-slitting → The pneumatic round knife pre-slitter cuts or prepares the paper width before pleating, supporting more stable material feeding.
Pre-heating and steam treatment → The paper passes through pre-heating and water steam treatment to help reduce paper breakage during marking and pleating.
Marking and rotary pleating → The machine marks and pleats the filter paper through rotary rollers according to the required pleat size and roller configuration.
Heat forming and conveying → After pleating, the paper is heat formed, counted, collected, and conveyed for the next truck filter production step.
| Model | JSMRGT-600 |
| Machine Type | Filter Paper Rotary Pleating Machine |
| Product Capability | 0–35 m/min |
| Max. Width | 1000 mm |
| Min. Width | 30 mm |
| Max. Pleat Height | 60 mm |
| Min. Pleat Height | 12 mm |
| Roller Size | Customizable |
| Temperature Control | 0–300°C |
| Main Power | 12 kW |
| Working Air Pressure | 0.6 MPa |
| Power Supply | 380V / 50Hz |
| Machine Weight | 1200 kg |
| Machine Dimension | 5200 × 1400 × 1170 mm |
The machine combines paper decoiling, pre-slitting, pre-heating, steam treatment, marking, collecting, rotary pleating, heat forming, and conveying in one continuous process.
It supports filter paper widths from 30 mm to 1000 mm and pleat heights from 12 mm to 60 mm, making it suitable for different truck filter paper specifications.
The pneumatic pre-slitting system is simple to adjust and helps provide even pressing during cutting, supporting smoother paper preparation before pleating.
The pre-heating and water steam devices help reduce paper breaking during roller marking and pleating, improving production stability for continuous operation.
The rollers can be made as bubbled type or pleat-lock type according to the required pleat structure, helping maintain suitable distance between pleats.
Automatic counting, gear collecting, and heat forming help improve production rhythm, pleated paper collection, and finished pleat consistency.
To confirm whether this model fits your truck filter paper pleating process, the following details are usually needed for machine selection or technical recommendation.
