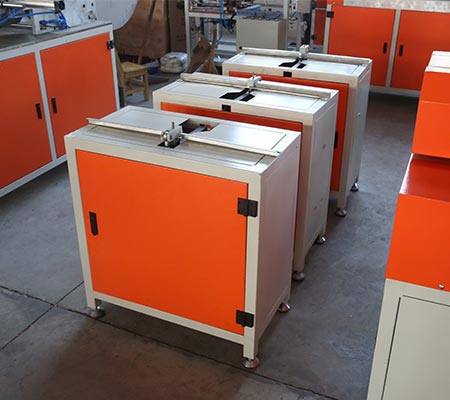

JSMRWT-1 Outer Frame Riveting Machine
Capacity: 30–40 times/min
Machine Power: 2 kW
Power Supply: 380V / 50Hz
The JSMRWT-1 Outer Frame Riveting Machine is designed for riveting and fixing outer frames in pocket filter and bag filter production. It helps improve frame assembly efficiency, maintain stable riveting quality, and reduce manual labor during the filter frame assembly process.
This model is suitable for routine outer frame riveting in pocket filter manufacturing. With 30–40 times/min capacity, 1–3 worker operation, compact machine weight, and simple workshop arrangement, it supports stable outer frame fixing before later pocket filter assembly or inspection.
Frame positioning → The pocket filter outer frame is placed according to the required frame size, riveting position, and assembly setup.
Riveting alignment → The frame edge and fixing point are aligned before riveting to help keep the outer frame structure stable.
Outer frame riveting → The machine rivets and fixes the outer frame to improve frame connection strength and assembly consistency.
Finished frame checking → After riveting, the fixed outer frame can be checked for firmness, appearance, and dimensional stability.
Next process transfer → The finished frame is moved to later pocket filter assembly, bag installation, inspection, or packaging steps.
| Model | JSMRWT-1 |
| Machine Type | Outer Frame Riveting Machine |
| Function | Outer frame riveting and fixing for pocket filter production |
| Capacity | 30–40 times/min |
| Worker Requirement | 1–3 |
| Machine Power | 2 kW |
| Power Supply | 380V / 50Hz |
| Machine Weight | 150 kg |
The machine is used for riveting and fixing outer frames in pocket filter production, helping complete an important frame assembly step before later filter assembly.
The riveting process helps secure the outer frame more consistently, reducing loose frame issues and improving the structural stability of finished pocket filters.
With a capacity of 30–40 times/min, the machine supports routine frame riveting work and helps improve production rhythm in bag filter manufacturing.
The machine can be operated by 1–3 workers, helping reduce repeated manual riveting work and making the assembly station easier to arrange.
With a machine weight of 150 kg, this model is suitable for practical workshop use and can be arranged as an auxiliary station in pocket filter production lines.
The machine structure is designed for routine outer frame riveting, supporting straightforward operation, frame fixing, and daily production handling.
To confirm whether this model fits your pocket filter outer frame riveting process, the following details are usually needed for machine selection or technical recommendation.
