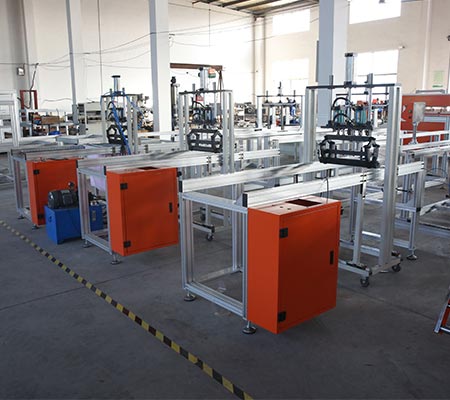

JSMRJG-500 Card Strip Pressing Machine
Strip Size: 24 / 12 inch
Capacity: 30–40 times/min
Machine Power: 3 kW
Power Supply: 380V / 50Hz
Machine Weight: 350 kg
The JSMRJG-500 Card Strip Pressing Machine is designed for pressing and securing card strips on bag filter frames in pocket filter production. It helps prevent strip dropping, improve inner frame clamping stability, and support more consistent pocket filter assembly.
This model integrates automatic frame conveying, stepper motor positioning, clamping, pressing, and automatic discharge functions. With two-station independent control and adjustable frame width, it is suitable for efficient card strip pressing in air cloth filter bag manufacturing.
Frame positioning → The bag filter frame and card strip are placed according to the required strip size, frame width, and assembly setup.
Automatic conveying → The automatic filter bag frame conveyor transfers the frame to the required clamping position.
Stepper motor control → The conveyor uses a stepper motor to position the bag frame accurately before pressing.
Card strip pressing → The oil cylinder drives the lever to compress the clamping bar and secure the card strip on the frame.
Automatic discharge → After pressing is completed, the finished frame is automatically sent out for the next pocket filter assembly step.
| Model | JSMRJG-500 |
| Machine Type | Card Strip Pressing Machine |
| Function | Clamping the strips, preventing dropping, two stations independent controlling |
| Strip Size | 24 / 12 inch |
| Capacity | 30–40 times/min |
| Worker Requirement | 1–3 |
| Machine Power | 3 kW |
| Power Supply | 380V / 50Hz |
| Machine Weight | 350 kg |
The machine is used for pressing and securing card strips on air cloth filter bag frames, helping improve frame assembly stability in pocket filter production.
The clamping and pressing process helps fix the card strip more firmly, reducing the risk of strip loosening or dropping during later assembly and handling.
The automatic filter bag frame conveyor transfers the bag frame to the clamping position, reducing repeated manual positioning during production.
The conveyor uses a stepper motor to position the frame accurately before pressing, supporting more consistent card strip clamping quality.
Two working stations with independent control help improve operation flexibility and support efficient repeated pressing during pocket filter assembly.
The oil cylinder drives the lever to compress the clamping bar, and the finished frame is automatically sent out after the pressing process is completed.
To confirm whether this model fits your pocket filter card strip pressing process, the following details are usually needed for machine selection or technical recommendation.
This model belongs to pocket filter production equipment and also covers the filter assembly process. You may also compare related machines in the following categories:
Bag Thickness: ≤ 10 mm
Capacity: 30–40 times/min
Machine Power: 3 kW
Power Supply: 380V / 50Hz
Capacity: 30–40 times/min
Machine Power: 2 kW
Power Supply: 380V / 50Hz
Product Capability: 0–35 m/min
Width Range: 30–1000 mm
Pleat Height Range: 12–60 mm
Temperature Control: 0–300°C
Main Power: 12 kW
