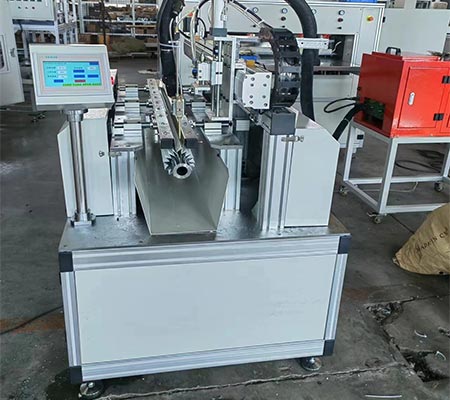

JSMRRZ-1000N Muti-layers Mesh Horizontal Hotmelt Gluing Machine
Hot Melt Machine Capacity: 10 kg
Heating Power: 6 kW
Air Pressure: 0.6 MPa
Supply Voltage: 380V / 50Hz
The JSMRRZ-1000N Multi-layer Mesh Horizontal Hotmelt Gluing Machine is designed for horizontal hot melt bonding of multi-layer mesh materials in truck filter production. It provides stable adhesive melting, controlled glue supply, and consistent bonding support for mesh component assembly.
This model helps manufacturers improve multi-layer mesh bonding consistency, reduce manual gluing variation, and support stable truck air filter production. With a 10 kg hot melt system, 6 kW heating power, and compact machine structure, it is suitable for continuous mesh gluing work in filter manufacturing workshops.
Mesh material positioning → Multi-layer mesh materials are placed according to the required bonding position, mesh structure, and truck filter production setup.
Hot melt preparation → The 10 kg hot melt system heats adhesive to the required working condition for stable glue supply.
Horizontal gluing → The machine applies hot melt adhesive horizontally to bond mesh layers or mesh components during production.
Layer bonding → The mesh materials are bonded together with more consistent adhesive distribution and improved processing stability.
Finished mesh output → After gluing, the bonded mesh component is prepared for later truck air filter assembly, forming, or inspection process.
| Model | JSMRRZ-1000N |
| Machine Type | Multi-layer Mesh Horizontal Hotmelt Gluing Machine |
| Function | Horizontal hot melt gluing for multi-layer mesh materials |
| Hot Melt Machine Capacity | 10 kg |
| Heating Power | 6 kW |
| Air Pressure | 0.6 MPa |
| Supply Voltage | 380V / 50Hz |
| Machine Weight | 500 kg |
| Machine Size | 1400 × 1100 × 1600 mm |
The machine is designed for bonding multi-layer mesh materials, helping complete an important mesh preparation step in truck air filter production.
The 10 kg hot melt system and 6 kW heating power help maintain stable adhesive melting and continuous glue supply during production.
The horizontal gluing structure supports practical mesh handling and helps improve bonding stability for layered mesh components.
Controlled hot melt application helps reduce manual gluing variation and improves the consistency of mesh bonding quality in repeated production.
With a machine size of 1400 × 1100 × 1600 mm and 500 kg machine weight, this model can be arranged as a practical gluing station in truck filter workshops.
The standard 380V / 50Hz supply voltage and 0.6 MPa air pressure requirement make the machine suitable for routine industrial filter production environments.
To confirm whether this model fits your truck air filter mesh gluing process, the following details are usually needed for machine selection or technical recommendation.
