Max. Paper Width: 680 mm
Pleat Depth Range: 3–70 mm
Pleat Speed: 0–200 pleats/min
Pleat Type: M, W, Stair, and other profiles
Power Voltage: 380V / 50Hz
Working Air Pressure: 0.6 MPa

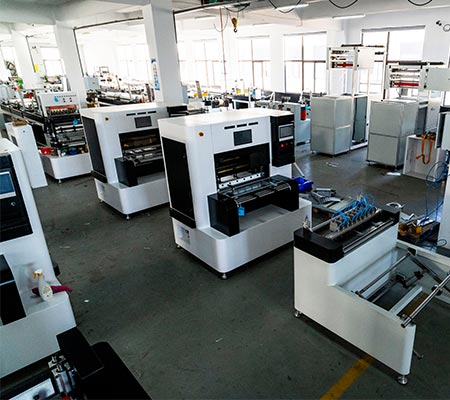

JSMRK6-700 Mesh Knife Pleating Machine
Max. Paper Width: 680 mm
Pleat Depth Range: 3–70 mm
Pleat Speed: 0–200 pleats/min
Pleat Type: M, W, Stair, and other profiles
Power Voltage: 380V / 50Hz
Working Air Pressure: 0.6 MPa
The JSMRK6-700 Mesh Knife Pleating Machine is designed for HVAC filter media pleating with multiple pleat profiles, including M type, W type, stair type, and other customized folding shapes. It supports a maximum paper width of 680 mm and a pleat depth range of 3–70 mm.
This model integrates pre-slitting, marking, pleating, and pre-heating functions in one process. It is suitable for manufacturers who need stable mesh knife pleating, flexible pleat profile adjustment, and consistent folding quality for HVAC filter media and multi-layer filter materials.
Media feeding → Filter paper or multi-layer media is fed into the machine according to the required paper width, pleat depth, and production setup.
Pre-slitting and marking → The machine supports pre-slitting and marking to prepare the media for more accurate pleat forming.
Knife pleating → The mesh knife pleating system forms M type, W type, stair type, and other pleat profiles with controlled folding depth.
Pre-heating → After marking and pleating, the material is pre-heated to support more stable forming quality.
Continuous production → Synchronized feeding, infrared monitoring, and automatic blade height adjustment help improve production consistency and operation efficiency.
| Model | JSMRK6-700 |
| Machine Type | Mesh Knife Pleating Machine |
| Max. Paper Width | 680 mm |
| Pleat Depth Range | 3–70 mm |
| Pleat Speed | 0–200 pleats/min |
| Pleat Type | M type, W type, stair type, and others |
| Servo Motor Power | 10 kW |
| Heat Power | 3 kW |
| Temperature Control | Normal–200°C |
| Suitable Material | Multi-layer materials |
| Working Air Pressure | 0.6 MPa |
| Power Voltage | 380V / 50Hz |
The machine can produce M type, W type, stair type, and other pleat profiles, making it suitable for HVAC filter media that requires different folding structures.
The pleat depth range of 3–70 mm supports different filter specifications and helps manufacturers adjust production according to media structure and finished product needs.
Pre-slitting and marking functions help prepare the media before pleating, supporting smoother folding and better pleat consistency during continuous production.
The pleating blade height can be adjusted automatically without manual operation, improving adjustment convenience and reducing setup time.
The material can be pleated and pre-heated after marking, helping improve forming stability and folding quality for HVAC filter media.
The machine supports multi-layer pleating and helps protect the material surface during folding. It can also process non-woven fabric and wire-supported materials according to production needs.
To confirm whether this model fits your HVAC filter media pleating process, the following details are usually needed for machine selection or technical recommendation.
