Product Capacity: 20 pcs/min
Work Length: 650 mm
Product Width: 700 mm

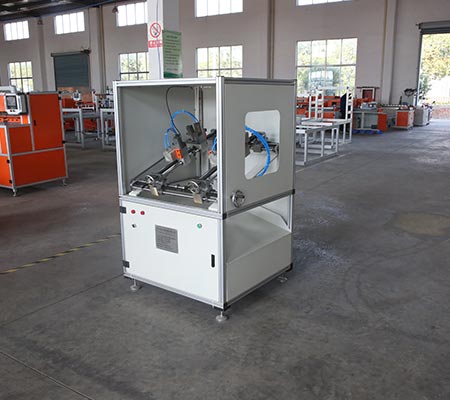

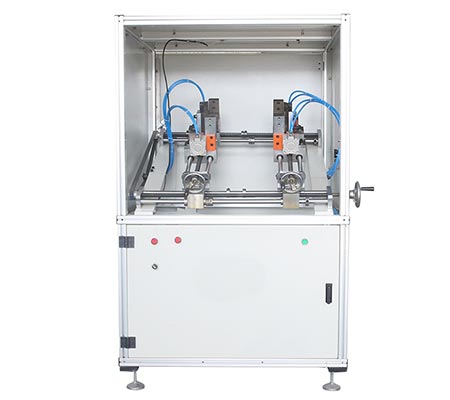

JSMRCQ-4 Cabin Air Filter Edge Trimming Machine
Product Capacity: 20 pcs/min
Work Length: 650 mm
Product Width: 700 mm
The JSMRCQ-4 Cabin Air Filter Edge Trimming Machine is designed for trimming and finishing the two sides of cabin air filters during production. It supports a product capacity of 20 pcs/min, work length of 650 mm, and product width of 700 mm.
This model helps manufacturers improve cabin filter edge consistency, reduce manual trimming variation, and support cleaner finished product appearance. With compact machine structure, pneumatic operation, and 220V / 50Hz power supply, it is suitable for routine edge trimming in automotive cabin air filter production lines.
Product positioning → The cabin air filter is positioned according to the required trimming side, work length, and product width.
Edge alignment → The two sides of the cabin filter are aligned before trimming to help maintain a more consistent finished edge.

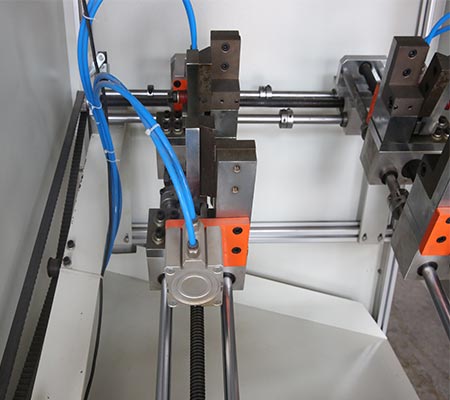

Side trimming → The machine trims or clips the cabin filter edges to remove excess material and improve product appearance.
Finished edge checking → After trimming, the filter edge can be checked for neatness, size consistency, and appearance quality.
Next process transfer → The trimmed cabin filter is prepared for later inspection, packing, or connection with other cabin filter production steps.
| Model | JSMRCQ-4 |
| Machine Type | Cabin Air Filter Edge Trimming Machine |
| Function | Two-side edge trimming for cabin air filters |
| Product Capacity | 20 pcs/min |
| Work Length | 650 mm |
| Product Width | 700 mm |
| Working Air Pressure | 0.6 MPa |
| Power Supply | 220V / 50Hz |
| Machine Weight | 200 kg |
| Machine Size | 1030 × 700 × 1000 mm |
The machine is designed for trimming or clipping the two sides of cabin air filters, helping improve finished edge consistency during production.
Stable edge trimming helps remove excess material and improve the appearance of finished cabin filters before inspection or packaging.
With a product capacity of 20 pcs/min, this model supports continuous cabin filter edge finishing in daily production lines.
The machine supports work length up to 650 mm and product width up to 700 mm, making it suitable for a broad range of cabin air filter specifications.
With a machine size of 1030 × 700 × 1000 mm and a weight of 200 kg, this model is practical for cabin filter workshop layout and production station arrangement.
The machine uses 220V / 50Hz power supply and 0.6 MPa working air pressure, supporting practical operation in cabin filter production environments.
To confirm whether this model fits your cabin filter edge trimming process, the following details are usually needed for machine selection or technical recommendation.
