Max Width: 700 mm
Adjustable Pleating Height: 3–70 mm
Pleating Speed: 0–400 pleats/min
Power Supply: 380V / 220V / 50Hz
Heating Temperature: Normal–300°C

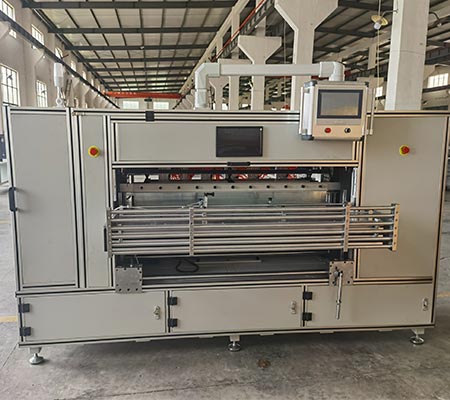

JMMR-AUTO-700 Filter Paper CNC Knife Pleating Machine
Max Width: 700 mm
Adjustable Pleating Height: 3–70 mm
Pleating Speed: 0–400 pleats/min
Power Supply: 380V / 220V / 50Hz
Heating Temperature: Normal–300°C
The JMMR-AUTO-700 Filter Paper CNC Knife Pleating Machine is designed for pleating filter paper and multi-layer filter materials in spin-on oil filter production. It supports a maximum width of 700 mm, adjustable pleating height from 3 mm to 70 mm, and pleating speed up to 400 pleats/min.
This model helps manufacturers improve oil filter media folding accuracy, pleat consistency, and production efficiency. With computer-controlled knife adjustment, preheating, counting, and forming functions, it is suitable for continuous filter paper processing in spin-on oil filter manufacturing.
Filter paper feeding → Filter paper or multi-layer filter media is fed into the machine according to the required width, pleat height, and oil filter production setup.
Preheating → The material passes through the preheating section to support more stable folding and reduce forming variation during pleating.
CNC knife adjustment → The upper and lower knife positions are adjusted by computer according to different pleating height and product requirements.
Knife pleating → Upper and lower knives work alternately to fold the filter media into accurate and consistent pleats.
Counting and forming → Automatic counting, pleating, preheating, and forming functions support continuous filter paper processing for spin-on oil filter production.
| Model | JMMR-AUTO-700 |
| Machine Type | Filter Paper CNC Knife Pleating Machine |
| Function | Filter paper pleating for spin-on oil filter production |
| Max Width | 700 mm |
| Adjustable Pleating Height | 3–70 mm |
| Pleating Speed | 0–400 pleats/min |
| Power Supply | 380V / 220V / 50Hz |
| Motor Power | 4 kW |
| Preheating Power | 4 kW |
| Heating Temperature | Normal–300°C |
| Working Air Pressure | 0.6 MPa |
| Machine Weight | 700 kg |
The upper and lower knives work alternately, while computer-controlled adjustment helps match different pleat heights and improve pleating accuracy.
The machine is suitable for filter paper and multi-layer filter materials used in spin-on oil filter production, supporting stable media folding before later assembly steps.
With pleating speed up to 400 pleats/min, this model supports efficient filter paper folding for continuous oil filter manufacturing.
Integrated preheating and forming functions help improve pleat stability and support more consistent filter paper processing during production.
The machine can handle different pleat shape changes according to product requirements, making it suitable for varied spin-on oil filter specifications.
The folding knife angle can be changed to help protect different filter materials and reduce the risk of media damage during high-speed pleating.
