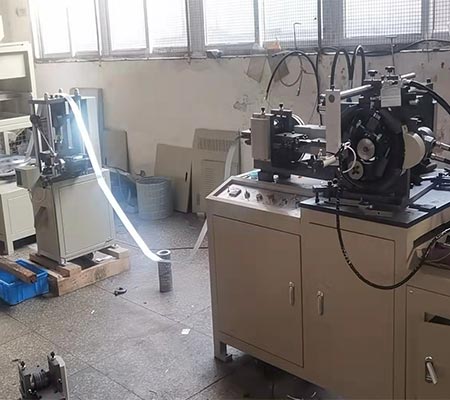

JSMRJY-75 Full-auto Spiral Center Tube Making Machine
Product Capacity: 20–35 pcs/min
Center Tube Diameter: Φ60–250 mm
Tube Length: Freely adjustable
Steel Plate Thickness: 0.25–0.8 mm
The JSMRJY-75 Full-auto Spiral Center Tube Making Machine is designed for producing spiral center tubes used in spin-on oil filter production. It supports center tube diameters from Φ60 mm to Φ250 mm, freely adjustable tube length, and stable spiral forming for continuous oil filter component manufacturing.
This model helps manufacturers improve center tube forming consistency, reduce manual adjustment, and support efficient spin-on oil filter assembly preparation. With computer-controlled operation, hydraulic drive, quick diameter change, and adjustable cutting length, it is suitable for automatic spiral center tube production from steel plate materials.
Steel material feeding → Steel plate material is fed into the machine according to the required center tube diameter, tube length, and oil filter production setup.
Diameter adjustment → The screw tube diameter can be adjusted according to different spin-on oil filter center tube specifications.
Spiral tube forming → The machine forms the steel material into a spiral center tube with stable hydraulic drive and controlled forming action.
Length cutting → Tube length can be cut according to different customer specifications or production requirements.
Finished tube output → The formed spiral center tube is prepared for later spin-on oil filter assembly, inspection, or connection with other production equipment.
| Model | JSMRJY-75 |
| Machine Type | Full-auto Spiral Center Tube Making Machine |
| Function | Spiral center tube forming for spin-on oil filters |
| Product Capacity | 20–35 pcs/min |
| Center Tube Diameter | Φ60–250 mm |
| Tube Length | Freely adjustable |
| Steel Plate Thickness | 0.25–0.8 mm |
| Motor Power | 3 kW |
| Power Supply | 415V / 50Hz |
| Working Air Pressure | 0.6 MPa |
| Machine Weight | 800 kg |
| Machine Size | 1600 × 800 × 1240 mm |
The machine is specially designed for producing spiral center tubes used in spin-on oil filters, supporting an important component preparation step before filter assembly.
The screw tube diameter can be changed easily in a short time, helping manufacturers switch between different center tube specifications more efficiently.
The tube length can be cut according to different customer specifications, making the machine suitable for varied spin-on oil filter product sizes.
The clutch can be adjusted according to different steel plate thicknesses, helping maintain stable forming performance across the 0.25–0.8 mm material range.
Computer control helps simplify operation procedures, improve production efficiency, and support more stable center tube forming quality.
The hydraulic pressure drive system provides strong power and stable operation, supporting continuous spiral center tube production in oil filter manufacturing lines.
To confirm whether this model fits your spin-on oil filter center tube production process, the following details are usually needed for machine selection or technical recommendation.
