Product Capacity: 30–50 pcs/min
Available Filter Diameter: Φ55–100 mm
Available Length: 60–140 mm
Printing Color: One Color

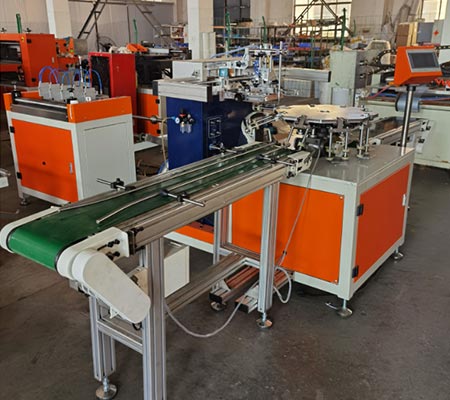

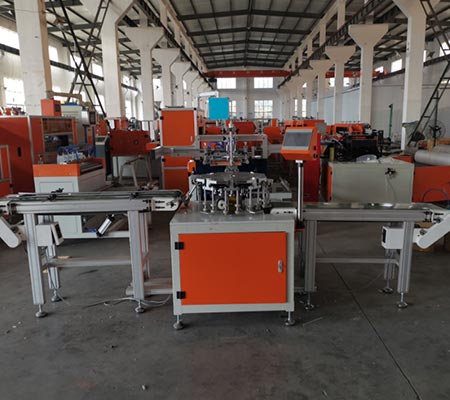

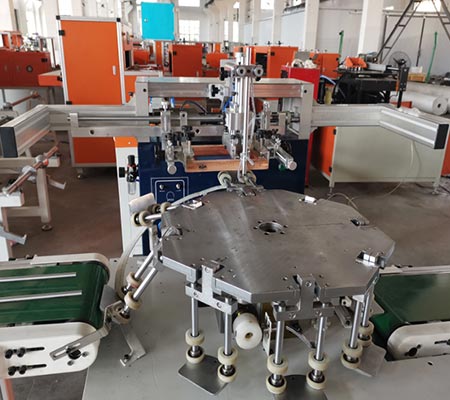

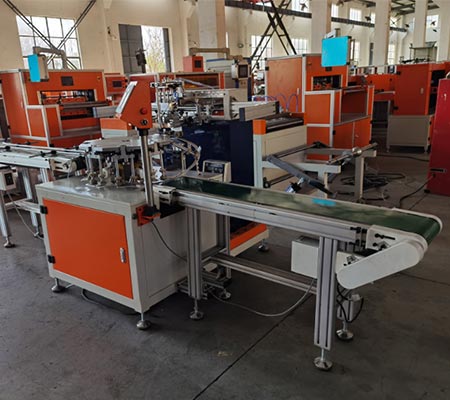

JSMRAS-110 Auto Silk Printing Machine for Spin On Filter
Product Capacity: 30–50 pcs/min
Available Filter Diameter: Φ55–100 mm
Available Length: 60–140 mm
Printing Color: One Color
The JSMRAS-110 Auto Silk Printing Machine for Spin On Filter is designed for printing brand names, logos, notices, and other markings on finished spin-on oil filter bodies. It supports automatic loading and unloading, one-color printing, and stable printing performance for continuous filter production.
This model helps manufacturers improve filter body appearance consistency, reduce manual printing variation, and support efficient product identification. With a product capacity of 30–50 pcs/min, available filter diameter of Φ55–100 mm, and easy printing design change, it is suitable for routine spin-on filter body marking and branding processes.
Filter loading → Finished spin-on filters are loaded into the machine according to the required filter diameter, length, and printing position.
Product positioning → The filter body is positioned to keep the printing area aligned before the printing process starts.
Printing pattern setup → Brand names, logos, notices, or other marking content are prepared according to the required filter body design.
Silk printing → The machine prints one-color markings on the filter body with stable ink application and controlled production rhythm.
Unloading and drying → After printing, the product is automatically unloaded and prepared for normal drying, inspection, packaging, or later production steps.
| Model | JSMRAS-110 |
| Machine Type | Auto Silk Printing Machine for Spin On Filter |
| Function | Brand name, logo, and marking printing on spin-on filter bodies |
| Product Capacity | 30–50 pcs/min |
| Available Filter Diameter | Φ55–100 mm |
| Available Length | 60–140 mm |
| Printing Color | One Color |
| Printing Ink Consumption | 0.85 g/min |
| Power Air Pressure | 6 kg/cm² |
| Air Consumption | 1.2 L/min |
| Electric Power | 380/220V × 50/60Hz × 3P |
| Main Motor | 0.4 kW, inverter |
| Machine Size | 900 × 1200 × 1500 mm |
| Machine Weight | 500 kg |
The machine is used for printing logos, brand names, notices, and product markings on finished spin-on filter bodies, helping improve product identification and appearance consistency.
Automatic loading and unloading support continuous production, reduce repeated manual handling, and help keep printing rhythm more stable.
The PLC control system supports stable machine operation and makes daily printing adjustment more convenient for operators.
Printing design change is simple, making the machine more flexible for different filter models, customer branding, and product marking requirements.
The machine supports one-color printing for spin-on filter bodies, helping maintain clear and consistent marking results in repeated production.
The printed ink on the filter body can remain clear after the normal drying process, supporting better finished product appearance and readability.
To confirm whether this model fits your spin-on oil filter body printing process, the following details are usually needed for machine selection or technical recommendation.
