Production Capacity: 6 pcs/min
Available Width: 110–280 mm
Available Length: max 500 mm
JSMRTB-2 Non-woven Strips Bonding Machine
Production Capacity: 6 pcs/min
Available Width: 110–280 mm
Available Length: max 500 mm

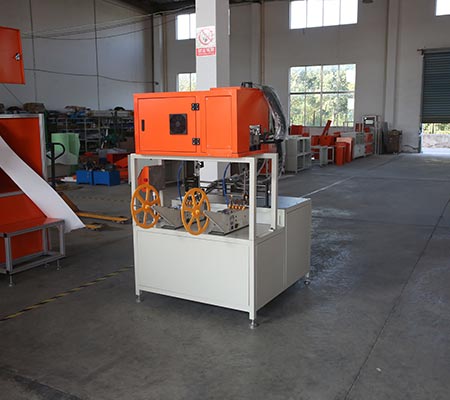

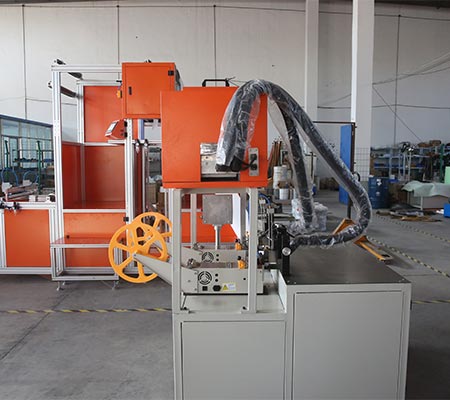

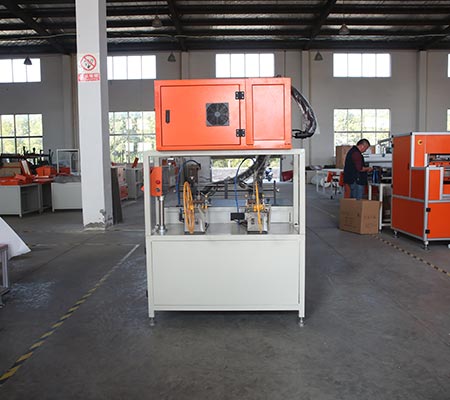

The JSMRTB-2 Non-woven Strips Bonding Machine is designed for bonding non-woven strips to cabin filter elements with hot melt adhesive. It supports a production capacity of 6 pcs/min, available width of 110–280 mm, and available length up to 500 mm.
This model helps manufacturers improve side strip bonding consistency, reduce manual bonding variation, and support stable cabin filter production. With precise glue head adjustment, servo-controlled bonding distance, stable strip positioning, and cooling air curtain support, it is suitable for continuous non-woven strip bonding in automotive cabin filter manufacturing.
Filter element positioning → The cabin filter element is positioned according to the required width, length, strip bonding position, and production setup.
Strip feeding → Non-woven strips are fed into the bonding area with tension and correction control to help maintain stable strip position.
Glue adjustment → The glue head height, glue width, glue amount, and glue thickness are adjusted according to the filter structure and bonding requirement.
Hot melt bonding → The coating head applies hot melt adhesive and bonds the non-woven strip to the filter element with servo-controlled bonding distance.
Cooling and output → After bonding, the product passes through the cooling air curtain to cool the hot melt glue quickly before later collection or inspection.
| Model | JSMRTB-2 |
| Machine Type | Non-woven Strips Bonding Machine |
| Function | Non-woven strip bonding for cabin filter elements |
| Production Capacity | 6 pcs/min |
| Available Width | 110–280 mm |
| Available Length | Max 500 mm |
| Power Supply | 220V / 50Hz |
| Hot Melt Tank Volume | 10 kg |
| Auto Melting Gun Quantity | 2 pcs |
| Auto Gun Type | Coating Head |
| Glue Width | 10–50 mm |
The machine is designed for bonding non-woven strips to cabin filter elements, helping complete an important side bonding process in cabin filter production.
The glue injection head height can be finely adjusted by handle with scale display, helping improve glue application accuracy during strip bonding.
Glue width can be adjusted from 10 mm to 50 mm, while glue thickness can be controlled through machine speed, glue amount, and glue head position.

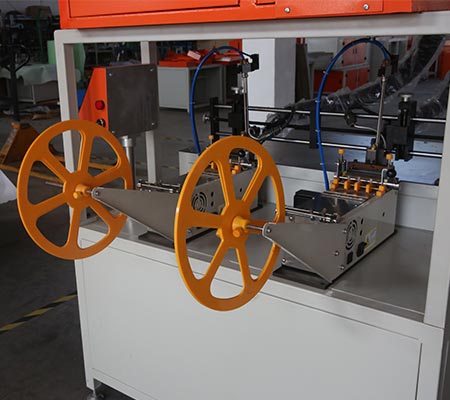

The side strip plate, tension mechanism, and correction mechanism help keep the non-woven strip stable and reduce strip deviation during continuous bonding.
The bonding distance between the filter element and the edge strip is adjusted by servo motor, supporting more accurate positioning for different filter specifications.
After glue injection and bonding, the product passes through a cooling air curtain to cool the hot melt glue quickly and support more stable finished bonding quality.
To confirm whether this model fits your cabin filter non-woven strip bonding process, the following details are usually needed for machine selection or technical recommendation.
