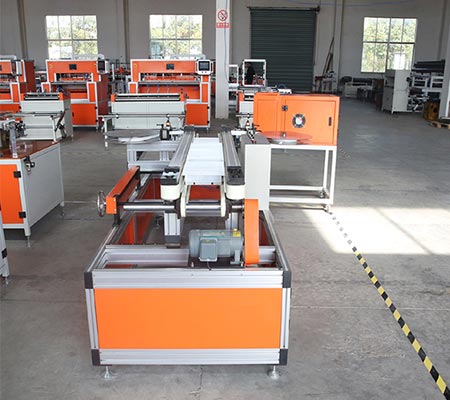

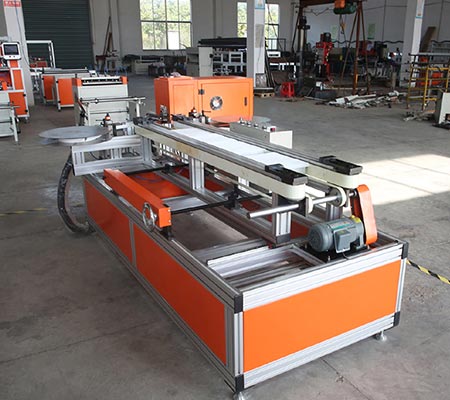

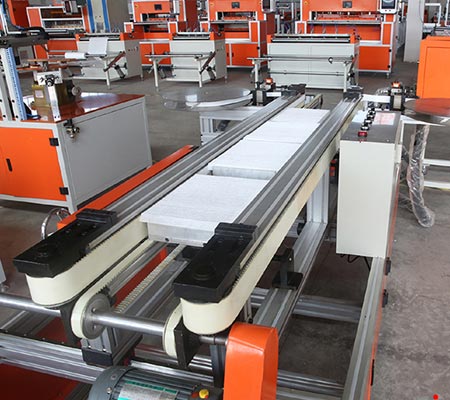

JSMR-AUTO-2 Full-automatic Strips Bonding Machine
Glue Injection Width: 10–50 mm
Processing Mode: Automatic A-side and B-side operation
The JSMR-AUTO-2 Full-automatic Strips Bonding Machine is designed for side strip bonding, trimming, and finishing in cabin air filter production. It supports automatic A-side and B-side operation, precise glue adjustment, stable strip positioning, and glue injection width from 10 mm to 50 mm.
This model helps manufacturers improve cabin filter side strip bonding consistency, reduce manual transfer between processing steps, and support more stable finished filter quality. With adjustable glue head height, glue thickness control, edge strip tension control, and correction mechanisms, it is suitable for automated cabin filter strip bonding and finishing processes.
Product loading → The cabin filter is loaded onto the shaping mold according to the required side strip position, product size, and production setup.
A-side correction and trimming → The machine completes automatic correction, welt cutting, trimming, demoulding, mold return, and final fine cutting for the A-side process.
Strip feeding control → Edge strip tension and correction mechanisms help keep the strip feeding stable during bonding and finishing.
B-side glue and welding process → The machine performs automatic glue-making, slicing, welding, rough cutting, and precision cutting for the B-side process.
Collection and inspection → After both side processes are completed, finished cabin filters are collected and prepared for inspection or later production steps.
| Model | JSMR-AUTO-2 |
| Machine Type | Full-automatic Strips Bonding Machine |
| Function | Side strip bonding, trimming, and finishing for cabin air filters |
| Processing Mode | Automatic A-side and B-side operation |
| Glue Injection Width | 10–50 mm |
| Glue Head Height Adjustment | Fine adjustment by handle with scale display |
| Glue Thickness Adjustment | By equipment speed, glue amount, and glue head-to-axis distance |
| Side Strip Plate Adjustment | Fine adjustment for lifting and lowering |
| Edge Strip Tension Control | Friction tension mechanism |
| Edge Strip Correction | Fine-tuning correction mechanism |
The machine is designed for automatic side strip bonding in cabin air filter production, helping reduce manual operation and improve process consistency.
A-side and B-side processes are both automated, covering correction, trimming, glue-making, slicing, welding, precision cutting, and collection.
Glue injection width can be adjusted from 10 mm to 50 mm, helping match different cabin filter side strip sizes and bonding requirements.
Glue head height can be fine adjusted by handle with scale display, while glue thickness can be controlled through equipment speed, glue amount, and glue head-to-axis distance.
The friction tension mechanism and fine-tuning correction mechanism help keep edge strip feeding stable and reduce strip deviation during production.
The machine not only bonds side strips but also supports trimming and finishing steps, helping improve finished cabin filter appearance and processing efficiency.
To confirm whether this model fits your cabin filter strip bonding process, the following details are usually needed for machine selection or technical recommendation.
