Max. Width: 700 mm
Adjustable Pleating Height: 3–70 mm
Pleating Speed: 0–400 pleats/min
Heating Temperature: Normal–300°C

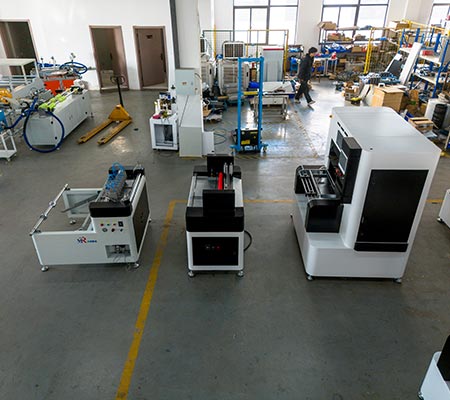

JSMR-AUTO-700 CNC Knife Pleating Machine
Max. Width: 700 mm
Adjustable Pleating Height: 3–70 mm
Pleating Speed: 0–400 pleats/min
Heating Temperature: Normal–300°C
The JSMR-AUTO-700 CNC Knife Pleating Machine is designed for pleating filter materials used in cabin air filter production. It supports a maximum width of 700 mm, adjustable pleating height from 3 mm to 70 mm, and pleating speed up to 400 pleats/min.
This model helps manufacturers improve cabin filter media folding accuracy, pleat consistency, and production efficiency. With computer-controlled knife adjustment, preheating, counting, and forming functions, it is suitable for different cabin filter media structures, including multi-layer filter materials.
Material feeding → Cabin filter media is fed into the machine according to the required material width, pleat height, and production setup.
Preheating → The media passes through the preheating section to support more stable folding and forming during pleating.
Computer knife adjustment → The upper and lower knife positions are adjusted automatically by computer according to different pleat height requirements.
Knife pleating → Upper and lower knives work alternately to fold the filter media into accurate and consistent pleats.
Counting and forming → Automatic counting, pleating, preheating, and forming functions help support stable continuous cabin filter media production.
| Model | JSMR-AUTO-700 |
| Machine Type | CNC Knife Pleating Machine |
| Function | Cabin filter media knife pleating |
| Max. Width | 700 mm |
| Adjustable Pleating Height | 3–70 mm |
| Pleating Speed | 0–400 pleats/min |
| Power Supply | 380V / 220V / 50Hz |
| Motor Power | 4 kW |
| Preheating Power | 4 kW |
| Heating Temperature | Normal–300°C |
| Working Air Pressure | 0.6 MPa |
| Machine Weight | 700 kg |
The upper and lower knives work alternately, while the knife position can be adjusted automatically by computer to match different pleat height requirements.
The machine is designed for pleating cabin air filter materials and can also handle different filter media structures, including multi-layer materials.
With pleating speed up to 400 pleats/min, this model supports efficient filter media folding for cabin filter production lines.
Integrated preheating and forming functions help improve pleat stability and reduce folding variation during continuous media processing.
The folding knife angle can be adjusted to help protect different filter materials and reduce the risk of material damage during pleating.
The line can be configured with pre-cutting, printing, counting, folding, and optional humidification mechanisms according to different customer production needs.
To confirm whether this model fits your cabin filter media pleating process, the following details are usually needed for machine selection or technical recommendation.
