Available Cap Diameter: ≤ Φ450 mm
Gluing Range: 10–260 g
Production Efficiency: 2–6 pcs/min
Mixing Ratio: 1:6, customizable
Machine Power: 4 kW
Working Air Pressure: 0.6 MPa
Power Supply: 380V / 50Hz

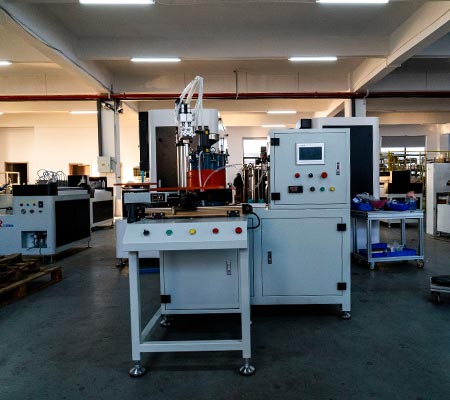

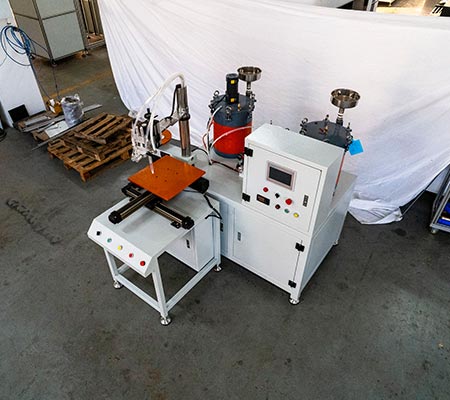

The JSMRAB-2 AB Gluing Machine for Air Filter End Caps is designed for dispensing and mixing two-component glue on air filter end caps. It supports an available cap diameter of ≤ Φ450 mm, a single gluing range of 10–260 g, and adjustable working parameters for different end cap sizes.
This model helps manufacturers improve AB glue mixing consistency, reduce manual dispensing variation, and support stable end cap bonding in air filter production. With proportional glue control, dynamic mixing, and tank heating functions, it is suitable for end cap gluing processes that require controlled glue output and repeatable production quality.
End cap positioning → The air filter end cap is placed according to the required cap diameter, gluing range, and production setup.
A/B material preparation → The A and B material tanks prepare two-component glue with heating, temperature keeping, and material circulation support.
Ratio control → The machine controls the mixing ratio according to the required glue formulation, with 1:6 as the standard ratio and customization available.
Dynamic mixing → The mixing head blends the two-component materials before dispensing to support more uniform glue output.
Glue dispensing → The machine applies the required glue amount to the end cap, helping improve bonding consistency and reduce manual operation variation.
| Model | JSMRAB-2 |
| Machine Type | AB Gluing Machine for Air Filter End Caps |
| Available Cap Diameter | ≤ Φ450 mm |
| Tank Capacity (A/B) | 30 L / 35 L |
| Gluing Range (Single) | 10–260 g |
| Gluing Speed | 3–15 s/cycle |
| Production Efficiency | 2–6 pcs/min |
| Mixing Ratio | 1:6, customizable |
| Mixing Head Speed | ≤ 3300 rpm |
| Turning Speed | ≤ 280 rpm |
| Machine Power | 4 kW |
| Working Air Pressure | 0.6 MPa |
| Power Supply | 380V / 50Hz |
| Machine Weight | 450 kg |
| Machine Dimension | 1800 × 1200 × 1700 mm |
The machine is designed for A/B glue dispensing on air filter end caps, helping improve glue application stability and end cap bonding consistency.
Gluing speed, turning speed, and glue amount can be adjusted according to different end cap sizes, glue requirements, and production conditions.
The mixing ratio can be controlled and customized to match different two-component glue requirements, supporting more consistent finished product quality.
The dynamic mixing system helps blend A and B glue materials before dispensing, reducing uneven mixing and improving glue application reliability.
The material tanks support mixing, heating, and temperature keeping, while the circulation system helps reduce material precipitation during production.
The PLC control system and touch screen interface make parameter setting, production adjustment, and daily operation more convenient for operators.
To confirm whether this model fits your air filter end cap production process, the following details are usually needed for machine selection or technical recommendation.
