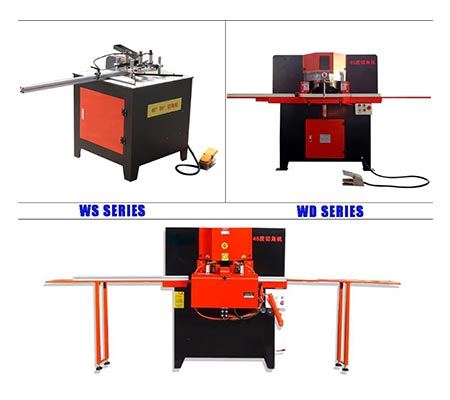

JSMRLQ-1 Aluminum Filter Frame Cutting Machine
Power: 2 kW
Voltage: 380V / 50Hz
Weight: 300 kg
The JSMRLQ-1 Aluminum Filter Frame Cutting Machine is designed for cutting aluminum frames used in HEPA filter production and air filter assembly. It supports stable frame cutting, simple operation, and practical workshop use for routine filter manufacturing processes.
This model helps manufacturers prepare cleaner aluminum frame sections, reduce manual cutting deviation, and improve cutting efficiency. With a stable machine structure and convenient daily maintenance, it is suitable for filter frame cutting steps that require repeatable operation and reliable production support.
Frame material positioning → Aluminum filter frame material is placed according to the required cutting length, angle, and production setup.
Cutting angle setup → The machine can be used for 45° cutting requirements commonly needed in filter aluminum frame preparation.
Frame cutting → The machine cuts the aluminum frame material into the required section for later filter frame assembly.
Manual loading and operation → The machine can be operated by 1 worker, making it practical for routine workshop production.
Finished section handling → Cut frame sections are prepared for the next process, such as frame assembly, bonding, or filter pack installation.
| Model | JSMRLQ-1 |
| Machine Type | Aluminum Filter Frame Cutting Machine |
| Power | 2 kW |
| Voltage | 380V / 50Hz |
| Machine Weight | 300 kg |
| Operation | Can be operated by 1 worker |
| Cutting Type | Aluminum filter frame cutting / 45° cutting |
The machine is designed for cutting aluminum frame materials used in HEPA filter production, helping prepare accurate frame sections for later assembly.
The machine can support 45° cutting requirements, making it suitable for aluminum filter frame corner preparation and frame assembly processes.
The machine can be operated by 1 worker, reducing operation complexity and making it practical for routine filter frame cutting tasks.
The 300 kg machine weight supports stable operation in workshop environments and helps reduce vibration during cutting.
Compared with fully manual cutting, the machine helps improve frame section consistency and reduce cutting deviation in repeated production.
The practical machine structure supports convenient cleaning, inspection, and routine maintenance for long-term workshop use.
To confirm whether this model fits your filter frame production process, the following details are usually needed for machine selection or technical recommendation.
