Max. Trim Length：≤1000 mm
Max. Width：≤500 mm
Effective Clamping Width：150–500 mm
Round Knife Diameter：Φ275 mm
Motor Power：2.2 kW
Working Air Pressure：0.6 MPa

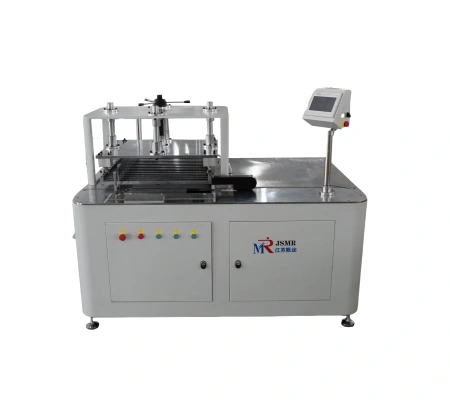

JSMRRS-1000 Hydraulic Oil Filter Multi-Layer Mesh Trimming Machine
Max. Trim Length：≤1000 mm
Max. Width：≤500 mm
Effective Clamping Width：150–500 mm
Round Knife Diameter：Φ275 mm
Motor Power：2.2 kW
Working Air Pressure：0.6 MPa
The JSMRRS-1000 Hydraulic Oil Filter Multi-Layer Mesh Trimming Machine is designed for trimming the edges of multi-layer pleated wire mesh used in hydraulic oil filter element production. It supports a maximum trimming length of 1000 mm, maximum width of 500 mm, and effective clamping width from 150 mm to 500 mm.
This model helps manufacturers control the finished filter element width before later forming, assembly, or sealing processes. With a Φ275 mm round knife, stable clamping structure, 2.2 kW motor power, and 0.6 MPa working air pressure, it is suitable for hydraulic filter mesh edge trimming and width adjustment.
Pleated mesh loading → Multi-layer pleated wire mesh is placed into the machine according to the required trimming length, finished width, and hydraulic filter element specification.
Clamping width adjustment → The clamping width is adjusted within the 150–500 mm range to hold different filter element widths more securely during trimming.
Trimming position setup → The operator confirms the required edge trimming amount and product width before the cutting process starts.
Round knife trimming → The Φ275 mm round knife trims the pleated mesh edge to help achieve a cleaner and more consistent finished width.
Finished mesh output → After trimming, the processed mesh is prepared for later forming, seam gluing, assembly, sealing, or other hydraulic filter element production steps.
| Model | JSMRRS-1000 |
| Machine Type | Hydraulic Oil Filter Multi-Layer Mesh Trimming Machine |
| Function | Edge trimming and width adjustment for multi-layer pleated wire mesh |
| Max. Trim Length | ≤1000 mm |
| Max. Width | ≤500 mm |
| Effective Clamping Width | 150–500 mm |
| Round Knife Diameter | Φ275 mm |
| Motor Power | 2.2 kW |
| Working Air Pressure | 0.6 MPa |
| Power Supply | 380V / 50Hz |
| Machine Weight | 600 kg |
| Machine Dimension | 1530 × 1240 × 1280 mm |
The machine is specially designed for trimming multi-layer pleated wire mesh used in hydraulic oil filter elements, supporting an important preparation step before later filter element processing.
By trimming the mesh edge, the machine helps obtain the required filter element width before forming, assembly, or sealing, reducing dimensional variation in later processes.
The maximum trimming length of 1000 mm makes this model suitable for common hydraulic filter mesh processing requirements and longer pleated mesh sections.
The effective clamping width can be adjusted from 150 mm to 500 mm, helping the machine adapt to different filter element widths and mesh structures.
The Φ275 mm round knife supports stable mesh edge trimming and helps maintain more consistent cutting performance during repeated production.
The machine is suitable for hydraulic oil filter element production and related metal mesh filter processing where accurate trimming and width adjustment are required.
To confirm whether this model fits your hydraulic oil filter mesh trimming process, the following details are usually needed for machine selection or technical recommendation.
