Production Capacity: 2 pcs/min
Filter Element Diameter Range: 60–200 mm
Maximum Filter Element Length: 630 mm

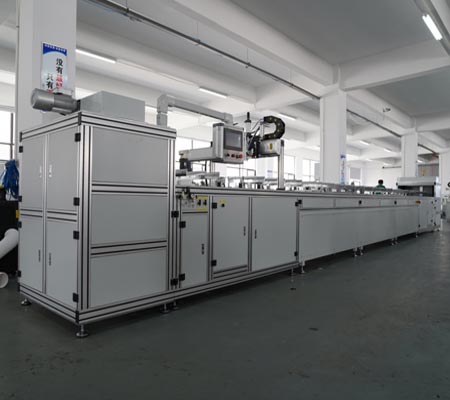

JSMRAB-600 Hydraulic Filter Element Middle Seam Gluing Line
Production Capacity: 2 pcs/min
Filter Element Diameter Range: 60–200 mm
Maximum Filter Element Length: 630 mm
The JSMRAB-600 Hydraulic Filter Element Middle Seam Gluing Line is designed for AB glue injection, middle seam gluing, and curing of hydraulic filter elements. It supports filter element diameter from 60 mm to 200 mm, maximum filter element length of 630 mm, and production capacity of 2 pcs/min.
This line helps manufacturers improve middle seam sealing consistency, reduce manual glue application variation, and support stable hydraulic filter element production. With AB glue injection, upper and lower conveying lines, filter fixtures, lifting transfer, heating curing, and computer-controlled operation, it is suitable for continuous hydraulic filter joint gluing and curing processes.
Filter element loading → The hydraulic filter element is placed into the fixture according to the required diameter, element length, and middle seam position.
Conveying and positioning → The upper conveying line transfers the filter element to the glue injection station and positions it for controlled seam gluing.
AB glue injection → The two-component AB glue injector applies adhesive to the middle seam area to support joint sealing and bonding.
Lifting transfer → After glue injection, the filter element is transferred by the lifting mechanism to the lower conveyor for the curing process.
Heating curing → The heating section helps solidify the adhesive and reduce glue flow, preparing the filter element for later inspection, assembly, or packaging.
| Model | JSMRAB-600 |
| Machine Type | Hydraulic Filter Element Middle Seam Gluing Line |
| Function | AB glue injection, middle seam gluing, and curing for hydraulic filter elements |
| Production Capacity | 2 pcs/min |
| Filter Element Diameter Range | 60–200 mm |
| Maximum Filter Element Length | 630 mm |
| Total Equipment Power | 12 kW |
| Working Air Pressure | 0.6 MPa |
| Power Supply | 380V / 50Hz |
| Temperature Control Range | Normal–300°C |
| Main Line Dimension | 12000 × 600 × 1700 mm |
| Additional Unit Dimension | 1200 × 800 × 1700 mm |
The line is specially used for glue injection and sealing of hydraulic filter element joints, helping improve seam bonding quality before later production steps.
The equipment integrates AB glue injection, conveying, fixtures, transfer, and curing into one process, reducing separate handling between gluing and solidification.
The filter element is loaded into the fixture and conveyed automatically to the glue injection station, helping keep the middle seam position more consistent.
After glue injection, the lifting mechanism transfers the filter element to the lower conveyor, supporting smoother process connection before heating curing.
The curing section helps the adhesive solidify without flowing, improving middle seam sealing quality and reducing quality variation during production.
Computer control allows convenient adjustment of conveying, glue injection, transfer, and curing sequences, supporting stable daily operation in hydraulic filter production.
To confirm whether this model fits your hydraulic filter element middle seam gluing process, the following details are usually needed for machine selection or technical recommendation.
