Line Width: 1050 mm
Pleating Height: 3–70 mm
Pleating Speed: 0–400 pleats/min
Decoiler Type: 5-layer
Cross Cutting: Full-automatic
Suitable Media: Paper, non-woven, PP synthetic media, glass fiber, active carbon, mesh, and multi-layers
The JSMR-5-1050 Filter Media Pleating Production Line is designed for continuous filter media processing in hydraulic filter production. It supports 1050 mm line width, 3–70 mm adjustable pleating height, 0–400 pleats/min pleating speed, 5-layer decoiling, slitting, and full-automatic cross cutting.
This line helps manufacturers process wider and multi-layer filter media with fewer manual transfers between steps. With CNC knife pleating, automatic pleat depth adjustment, stable servo and PLC control, and wide material compatibility, it is suitable for hydraulic filter media made from paper, non-woven, PP synthetic media, glass fiber, active carbon, mesh, and multi-layer materials.
Multi-layer media decoiling → Filter media rolls are loaded into the 5-layer decoiler according to the required media structure, width, roll diameter, and hydraulic filter production setup.
Tension and feeding control → The decoiling section feeds single-layer or multi-layer media into the line with controlled speed and air pressure support for smoother continuous operation.
CNC knife pleating → The pleating unit forms the filter media into consistent pleats, while pleat depth can be adjusted automatically by CNC control for different hydraulic filter specifications.
Slitting process → After pleating, the media can pass through the slitting section to support required width control before downstream cutting.
Full-automatic cross cutting → The cross cutting unit cuts the pleated media to the required length, preparing it for later rolling, seam gluing, assembly, or other hydraulic filter production steps.
Pleating Unit
| Model | JSMR-5-1050 |
| Machine Type | Filter Media Pleating Production Line |
| Function | Continuous decoiling, pleating, slitting, and cross cutting for hydraulic filter media |
| Max Width | 1050 mm |
| Adjustable Pleating Height | 3–70 mm |
| Pleat Depth Adjustment | Automatic by CNC control |
| Pleating Speed | 0–400 pleats/min |
| Power Supply | 380V / 220V / 50Hz |
| Motor Power | 3 kW |
| Pre-heating Power | 10 kW |
| Heating Temperature | Normal–300°C |
| Working Air Pressure | 0.6 MPa |
| Machine Weight | 1150 kg |
| Slitting Machine Size | 1400 × 1600 × 1400 mm |
| Servo Motors | 4 pcs, XINJE brand |
| PLC / Touch Screen | XINJE brand |
5-Layer Decoiler
| Media Diameter | ≤1050 mm |
| Media Width | ≤1050 mm |
| Speed | 4–20 m/min |
| Motor Power | 3.5 kW |
| Voltage | 380V / 60Hz |
| Air Pressure | 0.6 MPa |
| Machine Size | 1900 × 1300 × 1700 mm |
| Machine Weight | 900 kg |
Cross Cutting Unit
| Media Width | ≤1050 mm |
| Speed | 5–20 pcs/min |
| Air Pressure | 0.6 MPa |
| Machine Size | 1350 × 500 × 1280 mm |
| Machine Weight | 100 kg |
The line combines 5-layer decoiling, CNC knife pleating, slitting, and full-automatic cross cutting, helping reduce separate handling between filter media preparation steps.
With 1050 mm line width and matching decoiler and cutting width, this model is suitable for wider hydraulic filter media and multi-layer filter material processing.

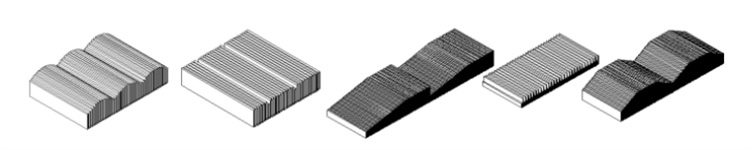

Pleat depth can be changed automatically by CNC control, making the line more flexible for different pleating heights, media structures, and hydraulic filter specifications.
The 5-layer decoiler supports multi-layer media feeding, helping manufacturers process combined filter media structures more efficiently before pleating.
The cross cutting unit supports continuous downstream cutting after pleating, helping prepare pleated media sheets for later hydraulic filter element production.
The line is equipped with servo motors, PLC, and touch screen control to support stable operation, easier adjustment, and more consistent production quality.
To confirm whether this model fits your hydraulic filter media pleating process, the following details are usually needed for machine selection or technical recommendation.
