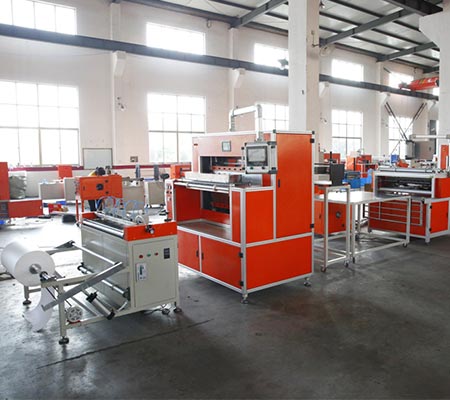

JSMR-PP-700 Filter Media Pleating and Gluing Production Line
Max Width: 700 mm
Pleating Height: 3–70 mm
Pleating Speed: 0–400 pleats/min
Gluing Speed: 25 m/min
Gluing Height Range: 8–80 mm
Gluing Lines: 2 × 26
The JSMR-PP-700 Filter Media Pleating and Gluing Production Line is designed for continuous filter media pleating and hot melt gluing in hydraulic filter production. It supports 700 mm maximum width, 3–70 mm adjustable pleating height, 0–400 pleats/min pleating speed, and 25 m/min gluing speed.
This line helps manufacturers combine CNC knife pleating and automatic glue line application into one continuous process. With wide material compatibility, CNC pleat depth adjustment, servo-controlled gluing, and flexible gluing modes, it is suitable for hydraulic filter media made from paper, non-woven, PP synthetic media, glass fiber, active carbon, mesh, and multi-layer materials.

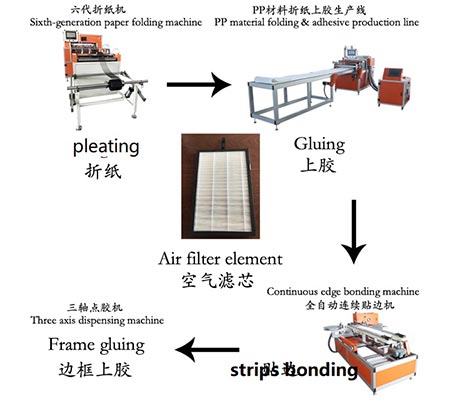

Media roll feeding → Filter media is loaded through the feeding section according to the required material type, media width, pleating height, and hydraulic filter production setup.
Tension and conveying control → Air shaft feeding, tension brake control, and computer-regulated conveyor speed help keep the media running smoothly before pleating.
CNC knife pleating → The pleating unit forms the media into consistent pleats, while pleat depth can be adjusted automatically by CNC control for different filter specifications.
Hot melt gluing → The gluing unit applies hot melt glue lines to the pleated media, supporting spacing stability, pleat separation, and later filter element forming.
Continuous output → After pleating and gluing, the processed filter media is prepared for cutting, rolling, seam gluing, assembly, or other hydraulic filter production steps.

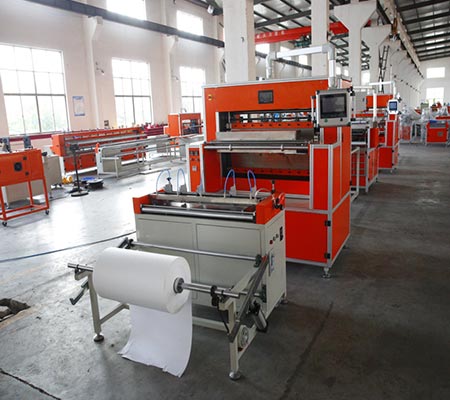

Pleating Unit
| Model | JSMR-PP-700 |
| Machine Type | Filter Media Pleating and Gluing Production Line |
| Function | Continuous pleating and hot melt gluing for hydraulic filter media |
| Max Width | 700 mm |
| Adjustable Pleating Height | 3–70 mm |
| Pleat Depth Adjustment | Automatic by CNC control |
| Pleating Speed | 0–400 pleats/min |
| Power Supply | 380V / 220V / 50Hz |
| Motor Power | 4 kW |
| Pre-heating Power | 10 kW |
| Heating Temperature | Normal–300°C |
| Working Air Pressure | 0.6 MPa |
| Machine Weight | 950 kg |
| Slitting Size | 1400 × 1600 × 1400 mm |
| Pleating Size | 2000 × 1600 × 1600 mm |
Gluing Unit
| Paper Roll Diameter | ≤700 mm |
| Element Width | ≤650 mm |
| Product Width | ≤650 mm |
| Production Capability | 25 m/min |
| Adjustable Height Range | 8–80 mm |
| Distance Between Gluing Lines | 25.4 mm |
| Number of Gluing Lines | 2 × 26 |
| Power Supply | 380V / 220V / 50Hz |
| Hot Melt Applicator Pre-heating Power | 18 kW |
| Motor Power | 1.5 kW |
| Working Air Pressure | 0.6 MPa |
The line combines CNC knife pleating and hot melt gluing in one continuous production process, reducing separate handling between pleating and glue application.
Pleat depth can be adjusted automatically by CNC control, making the line more flexible for different hydraulic filter media structures and pleating requirements.
The gluing unit supports 25 m/min production capability, 8–80 mm adjustable height range, and 2 × 26 glue lines for consistent pleat spacing and media bonding support.
The line supports multiple gluing modes, including continuous, separate, one-side, two-side, automatic, and manual modes, helping match different production habits and media designs.
It can process paper, non-woven, PP synthetic media, glass fiber, active carbon, mesh, and multi-layer materials used in hydraulic and industrial filter production.
Air shaft feeding, tension brake control, and computer-regulated conveyor speed help maintain smoother media feeding and more stable continuous production.
To confirm whether this model fits your hydraulic filter media pleating and gluing process, the following details are usually needed for machine selection or technical recommendation.
This model belongs to hydraulic filter production equipment and covers both filter media pleating and hot melt gluing processes. You may also compare related machines in the following categories:
Model: CJTN-100-8 / TN-100-8
Working Stations: 8 stations
Working Speed: 10–40 pcs/min, adjustable
Rated Capacity: 100KVA, adjustable
Line Width: 1050 mm
Pleating Height: 3–70 mm
Pleating Speed: 0–400 pleats/min
Decoiler Type: 5-layer
Cross Cutting: Full-automatic
Suitable Media: Paper, non-woven, PP synthetic media, glass fiber, active carbon, mesh, and multi-layers
Production Capacity: 2 pcs/min
Filter Element Diameter Range: 60–200 mm
Maximum Filter Element Length: 630 mm
