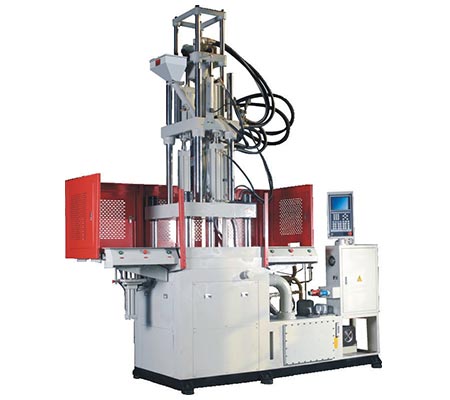

JSMRPP-1600 Air Filter PP Injection Machine
Injection Rate: 126 g/s
Theoretical Shot Volume: 143 cm³
Screw Diameter: 36 mm
Open Stroke: 200 mm
Machine Power: 17.2 kW
Machine Type: Vertical Hydraulic
The JSMRPP-1600 Air Filter PP Injection Machine is designed for plastic injection molding in passenger car air filter component production. It adopts a vertical hydraulic structure with stable injection control, precise mold clamping, and reliable performance for small and medium-sized filter plastic parts.
This model supports PP and multiple other plastic materials, making it suitable for air filter plastic component molding and insert molding. With a compact vertical layout, accurate injection system, and durable hydraulic structure, it helps manufacturers improve molding consistency and production reliability.
Material preparation → Plastic material such as PP is prepared according to the required air filter component structure and molding process.
Mold positioning → The mold is installed and clamped through the vertical hydraulic structure to support stable molding operation.
Injection molding → The in-line screw injection system injects melted plastic into the mold with controlled injection rate and shot volume.
Cooling and opening → After molding, the machine opens with the required stroke to support product release and next-cycle preparation.
Finished part handling → Molded plastic filter parts are removed for later assembly, inspection, or connection with other passenger car filter production processes.
| Model | JSMRPP-1600 |
| Model Number | TFV3-85R2 |
| Machine Type | Vertical Hydraulic Injection Machine |
| Style | Vertical |
| Injection Rate | 126 g/s |
| Theoretical Shot Volume | 143 cm³ |
| Screw Diameter | 36 mm |
| Screw Speed | 10–280 rpm |
| Open Stroke | 200 mm |
| Ejector Stroke | 100 mm |
| Machine Power | 17.2 kW |
| Heater Power | 7 kW |
| Machine Weight | 1600 kg |
| Plastic Processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP |
| Certification | CE |
| Warranty | 12 months |
The machine adopts a vertical hydraulic design with compact layout, stable mold clamping, and practical operation for passenger car air filter plastic part molding.
The lower mold remains fixed while the upper mold moves, helping improve insert positioning and support stable molding results for small and medium-sized embedded plastic parts.
The injection system supports controlled injection rate, shot volume, screw speed, and pressure protection, helping improve molding consistency and product quality.
The machine can process PP and various engineering plastics, making it flexible for different air filter plastic components and related molded parts.
The vertical structure and injection system make the machine suitable for both plastic injection molding and insert molding of filter-related components.
The electrical control and hydraulic components are designed for precision, stable operation, and reliable long-term use in filter component production.
To confirm whether this model fits your passenger car air filter component production process, the following details are usually needed for machine selection or technical recommendation.
