JSMRPM-1 Filter Ink-Jet Printing Machine

Printing Lines: 3 lines
Character Height: 0.8–12 mm
Product Speed: up to 300 m/min
Printing Speed: up to 2136 characters/sec
Power Supply: 100–240VAC, 50Hz
Power: 120–150W

Inquiry Now > >

Product Description

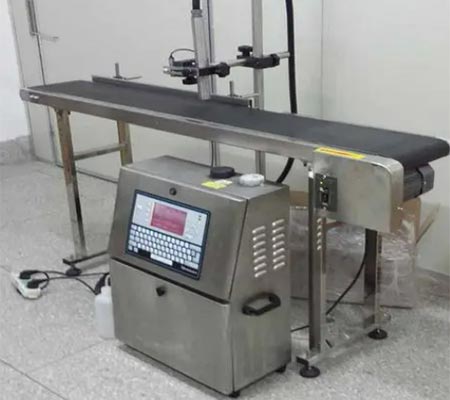

The JSMRPM-1 Filter Ink-Jet Printing Machine is designed for coding and marking on passenger car filter products. It can print production dates, batch numbers, model information, serial codes, logos, and other traceability content on filters or related components.

This model supports 3-line printing, adjustable character height, high-speed marking, message storage, logo storage, and multi-directional printing. It helps manufacturers improve product identification, production management, and traceability in passenger car filter manufacturing lines.

How the Machine Works

Product positioning → The filter product or component is positioned according to the required marking area and production line layout.

Message setting → Operators set the required text, batch number, date code, serial number, logo, or other marking content.

Nozzle adjustment → The printing head is adjusted according to the product surface, head-to-product distance, and printing direction.

Ink-jet printing → The machine prints clear identification content on the filter product during production or after assembly.

Code management → Stored messages, logo files, and counter functions help support repeated production, batch tracking, and product traceability.

Technical Parameters

Model	JSMRPM-1
Machine Type	Filter Ink-Jet Printing Machine
Nozzle	Constant temperature
Nozzle Diameter	41 mm
Nozzle Length	260 mm
Throat Length	2700 mm
Throat Diameter	21 mm
Bending Radius	150 mm
Power Supply	100–240VAC, 50Hz
Power	120–150W
Net Weight	27 kg
Temperature / Humidity Range	5°C–45°C
Printing Lines	3 lines
Character Height	0.8–12 mm
Product Speed	Up to 300 m/min
Printing Speed	Up to 2136 characters/sec
Message Storage	100 messages
Characters per Page	250
Logo Storage	30 logotypes
Head-to-Product Distance	90 mm

Engineering Features

Three-line printing capability

The machine supports up to 3 printing lines, making it suitable for adding date codes, batch numbers, model information, and other product identification content in a limited marking area.

Flexible character height

Character height can be adjusted from 0.8 mm to 12 mm, helping match different filter sizes, printing positions, and readability requirements.

High-speed line compatibility

The machine supports product speeds up to 300 m/min and printing speeds up to 2136 characters/sec, making it suitable for fast-running filter production lines.

Message and logo storage

It can store 100 messages and 30 logotypes, helping operators switch between different product codes, customer markings, or production batches more conveniently.

Traceability support

The counter function, repeated message printing, and multi-line coding help support serial numbering, batch tracking, and filter production traceability.

Compact integration

With a 27 kg net weight, wide power supply compatibility, and constant-temperature nozzle design, the machine is easier to integrate into different passenger car filter production layouts.

What to Confirm Before Machine Selection

To confirm whether this model fits your passenger car filter marking process, the following details are usually needed for machine selection or technical recommendation.

✓ Required printing content, such as date, batch number, model code, serial number, or logo

✓ Required printing lines and character height

✓ Filter product surface material and available marking area

✓ Production line speed and printing rhythm

✓ Printing direction, nozzle installation position, and head-to-product distance

✓ Need for message storage, logo storage, counter function, or repeated code printing

✓ Factory power supply, operating environment, and connection with other passenger car filter production equipment

Related Machine Categories

This model belongs to passenger car filter production equipment and is mainly used for coding, marking, and traceability printing on filter products. You may also compare related machines in the following category:

Passenger Car Filter Making Machine
