Product Capability: 0–35 m/min
Width Range: 30–1000 mm
Pleat Height Range: 12–60 mm

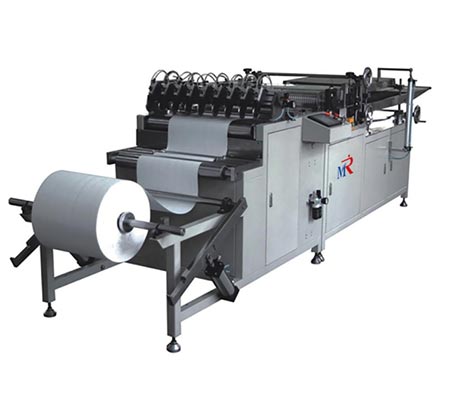

JSMRGT-600 Filter Paper Rotary Pleating Machine
Product Capability: 0–35 m/min
Width Range: 30–1000 mm
Pleat Height Range: 12–60 mm
The JSMRGT-600 Filter Paper Rotary Pleating Machine is designed for continuous filter paper pleating and heat forming in ECO filter production. It supports 0–35 m/min product capability, 30–1000 mm width range, and 12–60 mm pleat height range for automated filter media processing.
This model helps manufacturers improve pleating continuity, filter paper forming stability, and production consistency. With auto paper decoiling, pre-slitting, pre-heating, humidifying, roller marking, automatic counting, collecting, heat forming, and conveying functions, it is suitable for ECO filter paper pleating lines that require stable rotary pleating performance.
Paper decoiling → Filter paper is loaded and fed into the line according to the required paper width, pleat height, and ECO filter production setup.
Pre-slitting and pre-heating → The paper passes through pre-slitting and pre-heating sections to prepare the material before rotary pleating and heat forming.
Humidifying support → The water steam device helps improve filter paper toughness and reduce paper breakage during roller marking and pleating.
Rotary pleating and marking → The roller marking and drum system form continuous pleats while automatic counting and marking help separate filter elements more conveniently.
Collecting and conveying → After heat forming, the pleated filter paper is collected and conveyed for downstream cutting, assembly, or other ECO filter production steps.
| Model | JSMRGT-600 |
| Machine Type | Filter Paper Rotary Pleating Machine |
| Function | Continuous filter paper pleating and heat forming for ECO filter production |
| Product Capability | 0–35 m/min |
| Max Width | 1000 mm |
| Min Width | 30 mm |
| Max Pleat Height | 60 mm |
| Min Pleat Height | 12 mm |
| Roller Size | Customizable |
| Temperature Control | 0–300°C |
| Main Power | 12 kW |
| Working Air Pressure | 0.6 MPa |
| Power Supply | 380V / 50Hz |
| Machine Weight | 1200 kg |
| Machine Dimension | 5200 × 1400 × 1170 mm |
The machine combines paper decoiling, pre-slitting, pre-heating, humidifying, marking, counting, pleating, collecting, heat forming, and conveying into one continuous production line.
With a 30–1000 mm width range, this model can support different ECO filter paper specifications and help manufacturers handle varied product requirements.
The roller size can be customized according to different pleat requirements, making the machine more adaptable for different ECO filter paper structures.
The heating and water steam mechanism helps improve paper toughness and reduce breakage risk during high-speed rotary pleating and roller marking.
Automatic counting and marking according to filter paper length make element separation more convenient and help improve production organization.
The heat forming mechanism helps keep the pleated filter paper shape stable and reduces deformation during later ECO filter production steps.
To confirm whether this model fits your ECO filter paper rotary pleating process, the following details are usually needed for machine selection or technical recommendation.
This model belongs to ECO filter production equipment and is mainly used for filter paper rotary pleating and heat forming in ECO filter manufacturing. You may also compare related machines in the following category:
