Available Cap Diameter: ≤ Φ450 mm
Gluing Range (Single): 10–260 g
Product Efficiency: 2–6 pcs/min
Mixing Rate: 1:6, customizable
JSMRAB-2 Filter Gluing Machine
Available Cap Diameter: ≤ Φ450 mm
Gluing Range (Single): 10–260 g
Product Efficiency: 2–6 pcs/min
Mixing Rate: 1:6, customizable

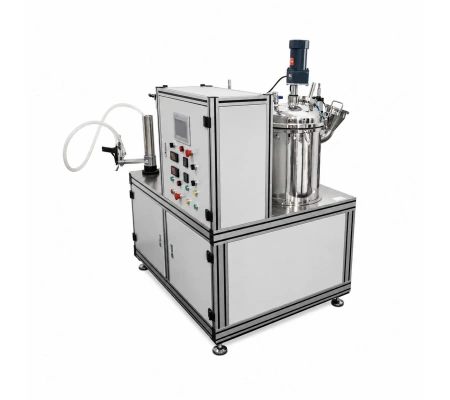

JSMRAB-2 Filter Gluing Machine is designed for AB glue dispensing in truck filter production. It supports automatic material loading, stable two-component glue mixing, and adjustable glue application for different product sizes. With controlled gluing speed, accurate mixing performance, and suitable capacity for continuous production, the machine helps improve gluing consistency and reduce manual labor in heavy-duty filter manufacturing.
|
Parameter |
Value |
|
Available Cap Diameter |
≤ Φ450 mm |
|
Tank Capacity (A/B) |
60 L / 35 L |
|
Gluing Range (Single) |
10–260 g |
|
Gluing Speed |
3–15 s/cycle |
|
Product Efficiency |
2–6 pcs/min |
|
Mixing Rate |
1:6, customizable |
|
Mixing Head Speed |
≤ 3300 rpm |
|
Turning Speed |
≤ 280 rpm |
|
Machine Power |
4 kW |
|
Working Air Pressure |
0.6 MPa |
|
Power Supply |
380V / 50Hz |
|
Machine Weight |
450 kg |
|
Machine Dimension |
1800 × 1200 × 1700 mm |
Designed for AB Glue Dispensing
The machine is used for two-component glue application in filter production and supports A/B glue processing through separate drums and pump delivery.
Automatic Material Loading
The production line supports automatic loading, which helps reduce operator labor during processing.
Stable Two-Component Glue Mixing
A glue and B glue are fed from separate drums and mixed through the pump body into the dispensing system for product processing.
Adjustable Glue Application
The source sheet notes that the width and height of the required product glue can be set, helping the machine adapt to different production requirements.
Suitable for Continuous Production
With an output of 2–6 pcs per minute and single-shot gluing range of 10–260 g, the machine is suitable for routine industrial filter production.
Integrated Production Structure

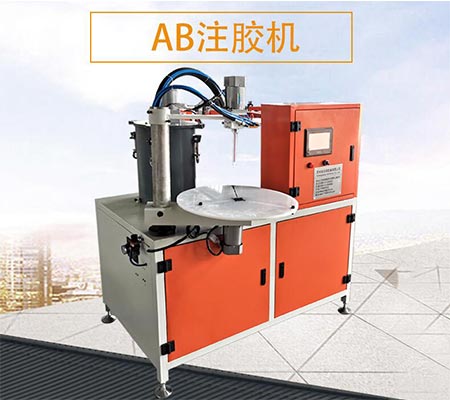

The AB gluing line consists of an automatic rubber loading device, rubber beating device, pump body, and supporting parts, forming a relatively complete gluing unit.
• AB glue dispensing for truck filters
• End cap gluing and sealing in heavy-duty filter production
• Two-component adhesive application for air filter products
