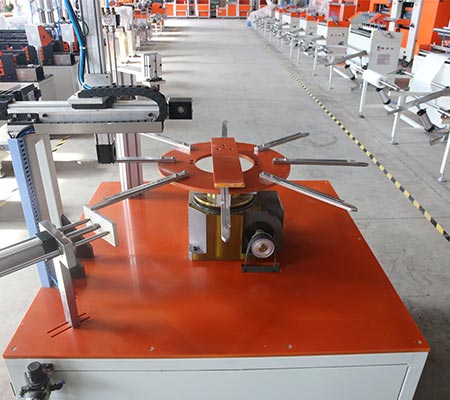

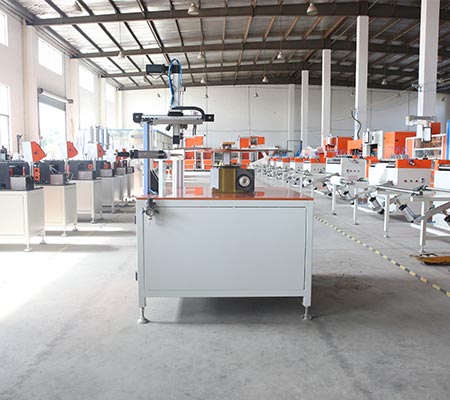

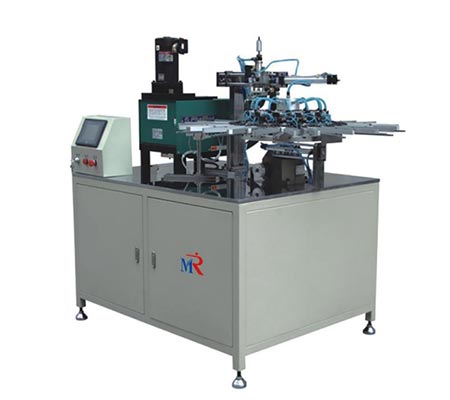

JSMRRS-8 8-Station Hotmelt Clipping Machine
Production Capacity: 15 pcs/min
Filter Height: ≤280 mm
Hot Melt Capacity: 10 kg
The JSMRRS-8 8-Station Hotmelt Clipping Machine is designed for hot melt bonding of folded joints at both ends of ECO filter elements. It supports 15 pcs/min production capacity, filter height up to 280 mm, and 8-station continuous processing for ECO filter production.
This model helps manufacturers improve folded joint bonding consistency, reduce manual hot melt operation, and support stable ECO filter element assembly. With automatic loading support, 10 kg hot melt capacity, 6 kW heating power, and standard 380V / 50Hz supply voltage, it is suitable for end-joint clipping and bonding in ECO filter manufacturing lines.
Filter element loading → ECO filter elements are loaded into the machine according to the required filter height, folded joint structure, and production setup.
8-station positioning → The machine moves products through the 8-station working structure to support continuous hot melt clipping and bonding.
Hot melt supply → The hot melt system supplies adhesive through the rubber tube to the dispensing gun for stable glue delivery during processing.
Folded joint bonding → The dispensing gun completes hot melt bonding at the folded joints on both ends of the filter element.
Finished product output → After clipping and bonding, the ECO filter element is prepared for later inspection, marking, heat shrinking, packaging, or other downstream production steps.
| Model | JSMRRS-8 |
| Machine Type | 8-Station Hotmelt Clipping Machine |
| Function | Hot melt bonding of folded joints at both ends of ECO filter elements |
| Production Capacity | 15 pcs/min |
| Filter Height | ≤280 mm |
| Hot Melt Machine Capacity | 10 kg |
| Heating Power | 6 kW |
| Air Pressure | 0.6 MPa |
| Supply Voltage | 380V / 50Hz |
| Machine Weight | 500 kg |
| Machine Size | 1400 × 1100 × 1600 mm |
The machine is used for hot melt bonding of folded joints at both ends of ECO filter elements, helping secure the joint area before later production or packaging steps.
The 8-station design supports continuous processing and helps improve production rhythm compared with single-position manual hot melt operation.
The automatic loading function helps reduce repeated manual handling and supports more stable operation during ECO filter element joint bonding.
The hot melt system connects the rubber tube with the dispensing gun on the module, allowing the dispensing gun to complete product processing in a controlled way.
With 6 kW heating power, 0.6 MPa air pressure, and 380V / 50Hz supply voltage, this model fits common workshop production conditions for ECO filter equipment.
The 1400 × 1100 × 1600 mm machine size and 500 kg machine weight make it suitable for arranging as a dedicated hot melt clipping station in ECO filter production lines.
To confirm whether this model fits your ECO filter hot melt clipping process, the following details are usually needed for machine selection or technical recommendation.
This model belongs to ECO filter production equipment and is mainly used for hot melt clipping and folded joint bonding in ECO filter manufacturing. You may also compare related machines in the following category:
